Lux ac battery controller

mickyduck55

newbuilder said:

That’s great but their after service is appalling and not worth the ink on the paper so I need to find a way to sort this

Send it back as faulty … 10 year Gtee?

newbuilder

mickyduck55 said:

newbuilder said:

That’s great but their after service is appalling and not worth the ink on the paper so I need to find a way to sort this

Send it back as faulty … 10 year Gtee?

And that’s where the useless service begins. Ask any question and they will answer, state fault and the blame hybrid systems not allowing it to work and suggest you put the SOLiC on a timer. How the timer knows about the sun is anyones guess. Also a section 85 claim wanted me to pay for an independent assessor to deem it as faulty or not fit for purpose

mickyduck55

Ok I don't have a hybrid system...
mine does "occasionally" detect export... starts to heat water then no export but it continues to heat using the battery... in the sunnier months not an issue ... a few years ago I turned it off due to the CT clamps from the Lux and Solic getting into a fight... TBH I have left it sat there for over 18 months and not touched it all is "OK".  An offset to set it to not start heating until 200 kWh being exported would be good but as my sig says a couple of other units supposedly "smarter" crapped out just after the Gtee expiry.. probably coating me £300 including a RTB warranty fix...
I can live with its limitations been sat there for quite a while now mostly doing exactly the job it was designed for.

chainreaction

If you have another ct clamp try that, it maybe the SOLIC ct that is out and thinks you are exporting all the time, hence the power draw.

Heedtheadvice

Sorry for the reference of old. Just what I found on their Web site!

I understand now where your power is going.

My first thought is that there is an error measuring by a CT. They are not very linear and are prone to those errors at low current levels. You may have read that Lux inverters gave an offset tweak to compensate. No idea about the Solic but they do make a point of zero export error. It would seem either the export reading is in error (as above) or there is an offset that has manifested in the Solic such as a measuring  offset in an opamp stage.

.....or it is reporting incorrectly? ..or whatever you get the info from!

Either way yours does not seem to meet the advertised claim! (Latter reason excluded)

If you are getting no joy from them:

No way you can easily compensate for that 100watts by adding a resistor. That means you would have to draw that 100watts somewhere else. You might as well put it into your HWCylinder.

If your ct is not connected by twisted air wire it might be worth changing that to reduce interference as that could cause an offset especially in faster reading devices.

Buying another ct might help in case yours is a bit duff but it is more likely it is the electronics with an offset or not handling the possible interference well. A very small capacitor accross the Solic ct input might help such as 0.1uF but I would not do that without manufacturers approval or suck it and see. Do not use a big value!!

Tir3d

EVandPV said:

I just hooked ours up to a 3 socket extension lead myself.
No more difficult than wiring a plug.
Of course, we'll only be able to plug stuff into the sockets, it won't power the lights or anything else wired to the CU.
But any decent spark should be able to wire it to the CU if that's what your after.

You should ensure that it is wired through a type A RCD. The easiest way would be via a socket outlet with integrated RCD. Otherwise you will have no RCD protection on those outlets (see BS7671).

gradgrind

Has anyone worked out what the pretty figures on the Lux web portal actually mean?

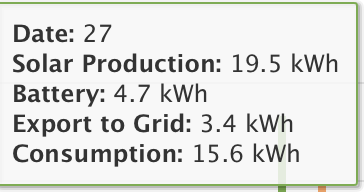

Example from a day or two ago:

What's the actual amount of electric consumed? is it 15.6, or 15.6 - 4.7?
Just trying to keep track of the actual savings made over using 100% grid.

ianatkin

gradgrind said:

Has anyone worked out what the pretty figures on the Lux web portal actually mean?
Example from a day or two ago:

What's the actual amount of electric consumed? is it 15.6, or 15.6 - 4.7?
Just trying to keep track of the actual savings made over using 100% grid.

It's 15.6kWh of which 4.7kWh was supplied by the battery 👍🏻

Starfrog

ianatkin said:

gradgrind said:

Has anyone worked out what the pretty figures on the Lux web portal actually mean?
Example from a day or two ago:

What's the actual amount of electric consumed? is it 15.6, or 15.6 - 4.7?
Just trying to keep track of the actual savings made over using 100% grid.

It's 15.6kWh of which 4.7kWh was supplied by the battery 👍🏻

Id personally prefer that it actually just told me what the actual usage that I had to pull from the grid was as that is going to be my actual costs rather than what i've consumed in a day but then have to sit and work out that some of it was provided by the Battery and some of it was provided by the solar (you would hope with 19.5!) and then just show consumption that has to be paid for as in grid to user. You can get that info under the website portal under Data, Energy and then select EnergytoUser but thats a bit long winded

newbuilder

Anyone got the LUX hybrid working on a 3 phase installation? Can it be done?
