Lux ac battery controller

Solarchaser

EVandPV said:

mickyduck55 said:

EVandPV said:

I have a 2017 batt which is also 2nd hand.
Oddly enough, it's the two brand new 2019 batts that have dropped 1%. The 2017 batt is still showing 100%. Having said that, I got the 2nd hand one a few months after the new ones.

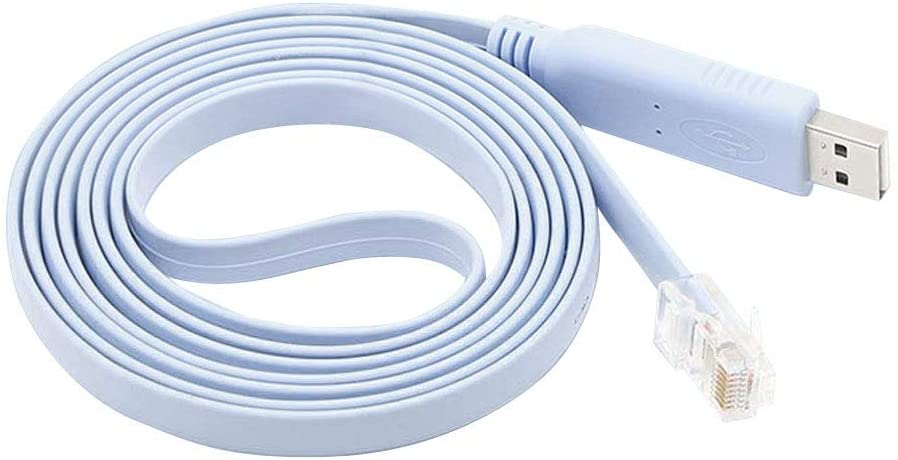

There's an official cable available if you can't be bothered knocking one up ......

https://www.ebay.co.uk/itm/Pylontech-Battery-US2000-Pylon-US3000-Cable-For-Battery-View-Software-Update/274498301389?hash=item3fe95fadcd:g:3rQAAOSwy7pfY1hn

That’s quite pricey ?

Aye it's a bit steep but the alternative is buying 2 cables (a usb serial cable and RJ10 cable) and splicing them together, which is a bit of a faff.

Is that all you have done?

I thought there was a bit of electronics to it.
I certainly have plenty of old usb cables, and an rj11 crimper.

I've clearly been to lazy to read the post you did about this a while ago.
Time to search back.

EVandPV

Solarchaser said:

EVandPV said:

mickyduck55 said:

EVandPV said:

I have a 2017 batt which is also 2nd hand.
Oddly enough, it's the two brand new 2019 batts that have dropped 1%. The 2017 batt is still showing 100%. Having said that, I got the 2nd hand one a few months after the new ones.

There's an official cable available if you can't be bothered knocking one up ......

https://www.ebay.co.uk/itm/Pylontech-Battery-US2000-Pylon-US3000-Cable-For-Battery-View-Software-Update/274498301389?hash=item3fe95fadcd:g:3rQAAOSwy7pfY1hn

That’s quite pricey ?

Aye it's a bit steep but the alternative is buying 2 cables (a usb serial cable and RJ10 cable) and splicing them together, which is a bit of a faff.

Is that all you have done?

I thought there was a bit of electronics to it.
I certainly have plenty of old usb cables, and an rj11 crimper.

I've clearly been to lazy to read the post you did about this a while ago.
Time to search back.

The electronics are in the usb cable. The usb end has an FTDI chip .....


I used wago connectors to test it before permanently soldering the wires .....

EVandPV

Some more info here about half way down the page ..... https://powerforum.co.za/topic/2322-youdas-off-grid-lab/page/2/

Solarchaser

OK so youda seems to know his stuff, but the list of model numbers just confused me.

So the ftdi chip is just usb-serial conversion?
And so if I have an rs232 cable, a laptop that takes rs232, and can simply cut it down and splice with rj11, and this means I could have a bash tomorrow as I've got that stuff in my garage anyway.

Though it's cold, and I'm lazy so I may just buy the same as Micky if it works 😂😂

martin2020

i need help with the octolux script if any one has it running - ive followed the instructions on github and the server is running but doesnt turn charge on and off automatically, i have to do it manually - instructions  mentions using cron and i think this is what im missing being not familiar with linux on the pi -  is cron needed ?

mickyduck55

EVandPV said:

I'm wondering if this might work ......
https://www.amazon.co.uk/Domoticz-Raspberry-FR232R-Kaifa-Kamstrup-162-382-en-351/dp/B07JGKJ6SM/ref=sr_1_6?dchild=1&keywords=usb+ftdi+cable+rj10&qid=1608716132&sr=8-6

Cable arrived do you have a link to the batteryview software.. The version I have found is in Chinese.

EVandPV

mickyduck55 said:

EVandPV said:

I'm wondering if this might work ......
https://www.amazon.co.uk/Domoticz-Raspberry-FR232R-Kaifa-Kamstrup-162-382-en-351/dp/B07JGKJ6SM/ref=sr_1_6?dchild=1&keywords=usb+ftdi+cable+rj10&qid=1608716132&sr=8-6

Cable arrived do you have a link to the batteryview software.. The version I have found is in Chinese.

Look at the options up the top left and click on the one with (L) in it.
Then select the option which isn't ticked and it should change to English.

IanEagland

Hi
Has anyone tried this for battery monitoring?
Ian
"github.com/irekzielinski/Pylontech-Battery-Monitoring"
Can't post full link, not been around long enough!

EVandPV

IanEagland said:

Hi
Has anyone tried this for battery monitoring?
Ian
"github.com/irekzielinski/Pylontech-Battery-Monitoring"
Can't post full link, not been around long enough!

Yeah saw that on YouTube.
It basically shows the same info you get with a serial cable and terminal app. Just sends it to a web page over wifi instead.
Same commands too.
Handy maybe if you need to constantly monitor your batts remotely for some reason.

martin2020

Finally got the octolux  scrips working.   Works a treat and automatically sets inverter to charge or discharge based on the current agile prices so currently will auto switch to charge if agile is 5p or lower.   Another cool handy feature is you can set it not to discharge the batteries if your soc is high and agile price is that low  you might as well use grid power
