Lux ac battery controller

Options
1…1920222425…202

Comments

  • mickyduck55
    mickyduck55 Posts: 676 Forumite
    Fifth Anniversary 500 Posts Name Dropper
    martin2020 said:
    anyone been running the latest firmware? any noticeable difference or bugs?
    Im on BAAA-1111 dont know if its the latest but don't seem to have any issues

    3.995kWP SSW facing. Commissioned 7 July 2011. 24 degree pitch (£3.36 /W).
    17 Yingli 235 panels
    Sunnyboy 4000TL inverter
    Sunny Webox
    Solar Immersion installed May 2013, after two Solar Immersion lasting just over the guarantee period replaced with Solic 200... no problems since.

    13 Feb 2020 LUX AC 3600 and 3 X Pylon Tech 3.5 kW batteries added...

    20 January 2024 Daikin ASHP installed
  • EVandPV
    EVandPV Posts: 2,112 Forumite
    Fifth Anniversary 1,000 Posts Name Dropper
    mickyduck55 said:
    Just set this up.. 4 hours charging on "Go" from 00:31 - 04:29... The AC charge level was set at 95%.. I have changed it to 100% is there any problem with that?  Also set charge rate to 80% reduced from 100%... comment on another thread re "It being a little kinder to the batteries"  My theory is that this setting could put 11.2 kW into the battery as the max charge rate is set at 3.6 kW.. am I right ? (Battery is 10.5 kW).  TIA
    Looks fine Mick, as long as your getting enough charge at 80%.
    Scott in Fife, 2.9kwp pv SSW facing, 2.7kw Fronius inverter installed Jan 2012 - 14.3kwh Seplos Mason battery storage with Lux ac controller - Renault Zoe 40kwh, Corsa-e 50kwh, Zappi EV charger and Octopus Go
  • EVandPV
    EVandPV Posts: 2,112 Forumite
    Fifth Anniversary 1,000 Posts Name Dropper
    edited 30 November 2020 at 5:36PM
    martin2020 said:
    anyone been running the latest firmware? any noticeable difference or bugs?

    As far as I know, ours is on the latest firmware and running fine. Not much difference from the previous version.
    Some versions do seem to have a bug which causes some import, usually around 50 watts, but the latest firmware is ok.
    Scott in Fife, 2.9kwp pv SSW facing, 2.7kw Fronius inverter installed Jan 2012 - 14.3kwh Seplos Mason battery storage with Lux ac controller - Renault Zoe 40kwh, Corsa-e 50kwh, Zappi EV charger and Octopus Go
  • mickyduck55
    mickyduck55 Posts: 676 Forumite
    Fifth Anniversary 500 Posts Name Dropper
    EVandPV said:
    mickyduck55 said:
    Just set this up.. 4 hours charging on "Go" from 00:31 - 04:29... The AC charge level was set at 95%.. I have changed it to 100% is there any problem with that?  Also set charge rate to 80% reduced from 100%... comment on another thread re "It being a little kinder to the batteries"  My theory is that this setting could put 11.2 kW into the battery as the max charge rate is set at 3.6 kW.. am I right ? (Battery is 10.5 kW).  TIA
    Looks fine Mick, as long as your getting enough charge at 80%.
    80% is 2.88 kW max ... for 4 hours =11.52 kW
    batteries will only take 9.5 ish.... so should be fine
    3.995kWP SSW facing. Commissioned 7 July 2011. 24 degree pitch (£3.36 /W).
    17 Yingli 235 panels
    Sunnyboy 4000TL inverter
    Sunny Webox
    Solar Immersion installed May 2013, after two Solar Immersion lasting just over the guarantee period replaced with Solic 200... no problems since.

    13 Feb 2020 LUX AC 3600 and 3 X Pylon Tech 3.5 kW batteries added...

    20 January 2024 Daikin ASHP installed
  • EVandPV
    EVandPV Posts: 2,112 Forumite
    Fifth Anniversary 1,000 Posts Name Dropper
    mickyduck55 said:
    martin2020 said:
    anyone been running the latest firmware? any noticeable difference or bugs?
    Im on BAAA-1111 dont know if its the latest but don't seem to have any issues

    That's what I'm and was told it's up to date.
    Scott in Fife, 2.9kwp pv SSW facing, 2.7kw Fronius inverter installed Jan 2012 - 14.3kwh Seplos Mason battery storage with Lux ac controller - Renault Zoe 40kwh, Corsa-e 50kwh, Zappi EV charger and Octopus Go
  • Solarchaser
    Solarchaser Posts: 1,758 Forumite
    Sixth Anniversary 1,000 Posts Name Dropper
    mickyduck55 said:
    Just set this up.. 4 hours charging on "Go" from 00:31 - 04:29... The AC charge level was set at 95%.. I have changed it to 100% is there any problem with that?  Also set charge rate to 80% reduced from 100%... comment on another thread re "It being a little kinder to the batteries"  My theory is that this setting could put 11.2 kW into the battery as the max charge rate is set at 3.6 kW.. am I right ? (Battery is 10.5 kW).  TIA

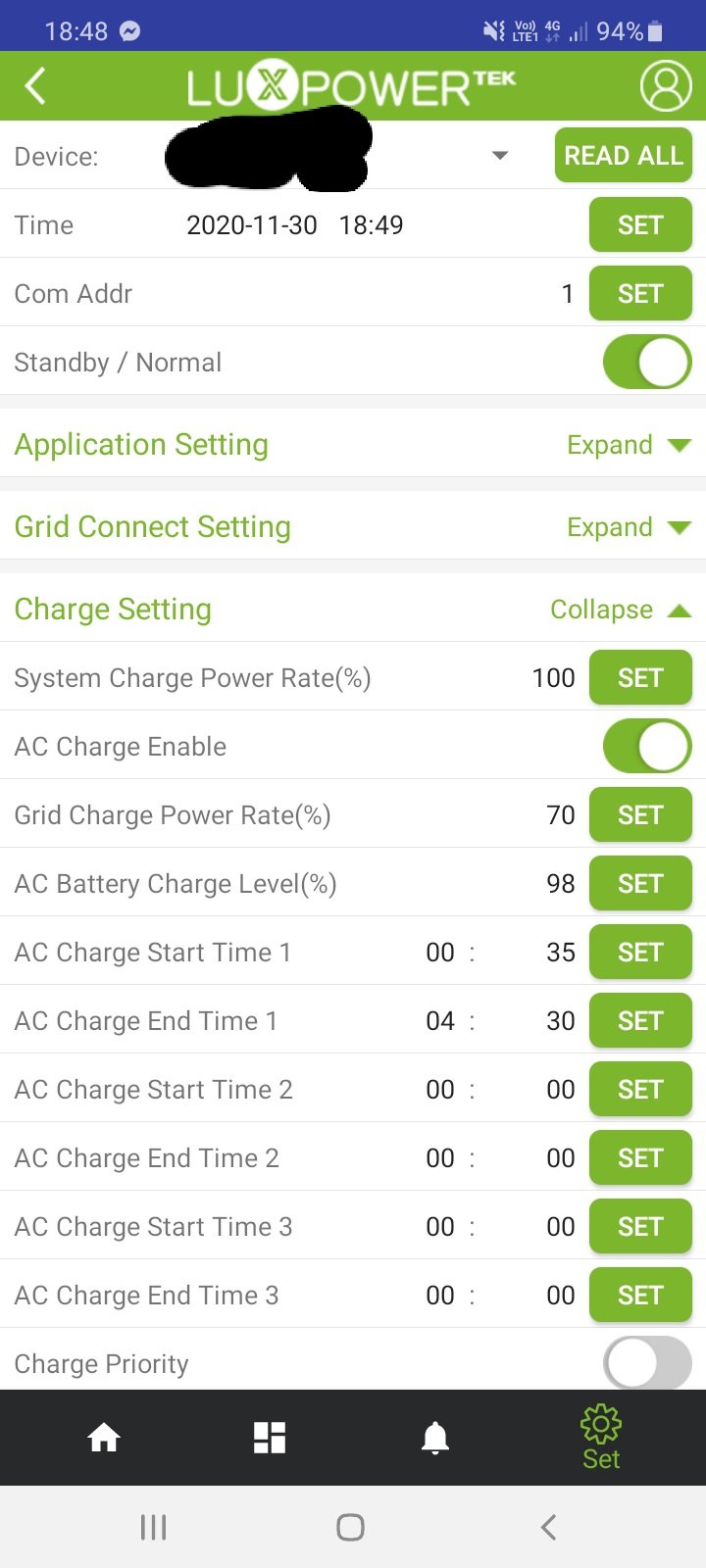

    That may have been me.
    I have actually set mine to 70%

    I have set my max charge to 98% purely because they never get to 100% on my system.

    This has been fine to charge my 4x 2.4kwh pylontech each night
    West central Scotland
    4kw sse since 2014 and 6.6kw wsw / ene split since 2019
    24kwh leaf, 75Kwh Tesla and Lux 3600 with 60Kwh storage
  • EVandPV
    EVandPV Posts: 2,112 Forumite
    Fifth Anniversary 1,000 Posts Name Dropper
    Solarchaser said:
    I have set my max charge to 98% purely because they never get to 100% on my system.

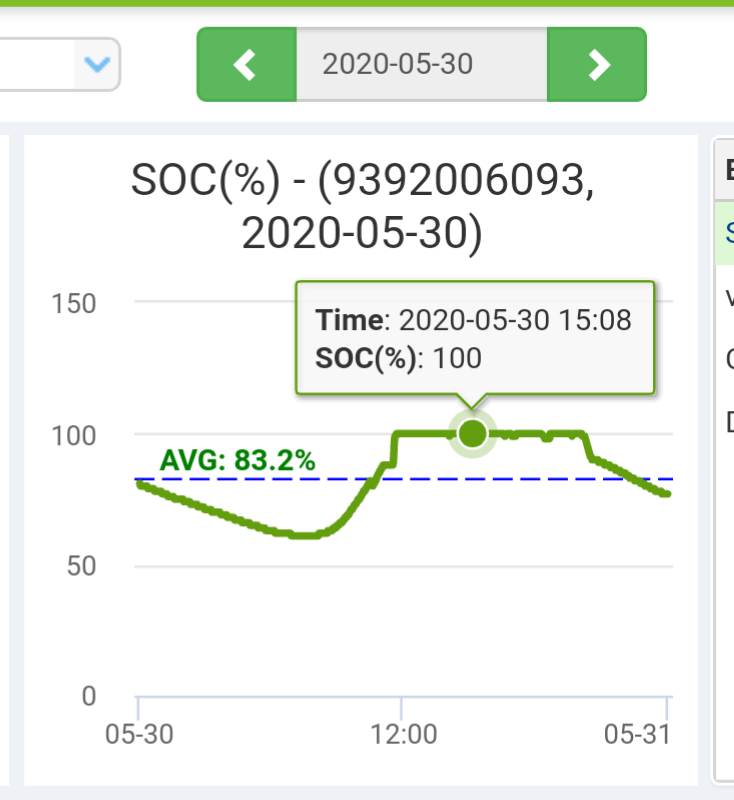

    Mine usually only reach 99% when grid charging and only occasionally get to 100%.
    Strangely though, they get to 100% no problem when charging from pv.
    No idea why that would be !!??


    Scott in Fife, 2.9kwp pv SSW facing, 2.7kw Fronius inverter installed Jan 2012 - 14.3kwh Seplos Mason battery storage with Lux ac controller - Renault Zoe 40kwh, Corsa-e 50kwh, Zappi EV charger and Octopus Go
  • mickyduck55
    mickyduck55 Posts: 676 Forumite
    Fifth Anniversary 500 Posts Name Dropper
    edited 30 November 2020 at 8:37PM
    I will see how full and how quickly they did reached it in the morning and will lower % charge rate to as low as I can but making sure they are fully charged
    3.995kWP SSW facing. Commissioned 7 July 2011. 24 degree pitch (£3.36 /W).
    17 Yingli 235 panels
    Sunnyboy 4000TL inverter
    Sunny Webox
    Solar Immersion installed May 2013, after two Solar Immersion lasting just over the guarantee period replaced with Solic 200... no problems since.

    13 Feb 2020 LUX AC 3600 and 3 X Pylon Tech 3.5 kW batteries added...

    20 January 2024 Daikin ASHP installed
  • Solarchaser
    Solarchaser Posts: 1,758 Forumite
    Sixth Anniversary 1,000 Posts Name Dropper
    Hmm, mine have never got to 100% either grid or solar charging , maybe I'll swap batteries around and see if I can get 100%
    West central Scotland
    4kw sse since 2014 and 6.6kw wsw / ene split since 2019
    24kwh leaf, 75Kwh Tesla and Lux 3600 with 60Kwh storage
  • EVandPV
    EVandPV Posts: 2,112 Forumite
    Fifth Anniversary 1,000 Posts Name Dropper
    Solarchaser said:
    Hmm, mine have never got to 100% either grid or solar charging , maybe I'll swap batteries around and see if I can get 100%
    What's your SOH % at ?
    Scott in Fife, 2.9kwp pv SSW facing, 2.7kw Fronius inverter installed Jan 2012 - 14.3kwh Seplos Mason battery storage with Lux ac controller - Renault Zoe 40kwh, Corsa-e 50kwh, Zappi EV charger and Octopus Go
