On-grid domestic battery storage
Options
Comments
-
@newbuilder that's the DC switch for the solar panels on your hybrid inverter. Starfrog has an AC-coupled inverter that is unlikely to have the same switch.@Starfrog I know my inverter is a Sofar not a Lux but I have a DC-rated breaker between my inverter and my battery. The Sofar installation manual asked for it.EDIT: see page 07 of the Lux installation manual, there's a DC breaker in the wiring diagram:
https://luxpowertek.com/wp-content/uploads/2022/02/08_ACS-EN-UM-1.0-03.pdfN. Hampshire, he/him. Octopus Intelligent Go elec & Tracker gas / Vodafone BB / iD mobile. Ripple Kirk Hill member.
2.72kWp PV facing SSW installed Jan 2012. 11 x 247w panels, 3.6kw inverter. 34 MWh generated, long-term average 2.6 Os.Not exactly back from my break, but dipping in and out of the forum.Ofgem cap table, Ofgem cap explainer. Economy 7 cap explainer. Gas vs E7 vs peak elec heating costs, Best kettle!0 -
Our installer didn't fit a DC breaker either.QrizB said:@newbuilder that's the DC switch for the solar panels on your hybrid inverter. Starfrog has an AC-coupled inverter that is unlikely to have the same switch.@Starfrog I know my inverter is a Sofar not a Lux but I have a DC-rated breaker between my inverter and my battery. The Sofar installation manual asked for it.EDIT: see page 07 of the Lux installation manual, there's a DC breaker in the wiring diagram:
https://luxpowertek.com/wp-content/uploads/2022/02/08_ACS-EN-UM-1.0-03.pdf
I'm wondering if that applies to non-pylontech batteries ??Scott in Fife, 2.9kwp pv SSW facing, 2.7kw Fronius inverter installed Jan 2012 - 14.3kwh Seplos Mason battery storage with Lux ac controller - Renault Zoe 40kwh, Corsa-e 50kwh, Zappi EV charger and Octopus Go0 -
Im still not having any change even after powering the inverter down and connecting the batteries again ? what battery type is Aoboet ? 2 or 7
——-
12 x JASolar 455w Panels (5.46kWp south facing array) Enphase Microinverters IQ7+, Lux AC ESS 3.6kW, 5 x 2.4kwh = 12kWh Plyontech US2000C Battery storage, Lochinver far North, west coast of Scotland0 -

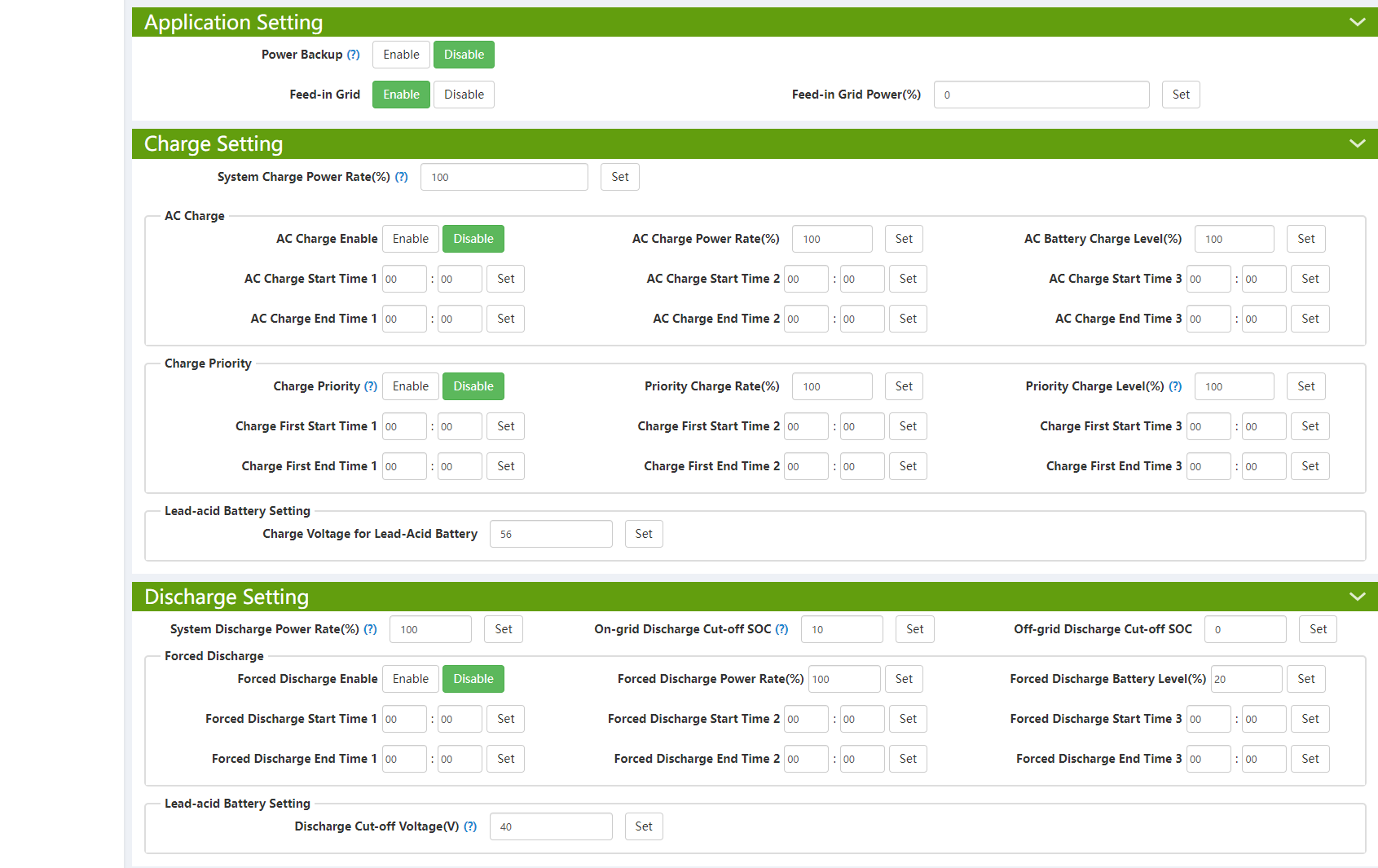

are these settings okay or do i need to change anything ?
——-
12 x JASolar 455w Panels (5.46kWp south facing array) Enphase Microinverters IQ7+, Lux AC ESS 3.6kW, 5 x 2.4kwh = 12kWh Plyontech US2000C Battery storage, Lochinver far North, west coast of Scotland0 -
Starfrog said:are these settings okay or do i need to change anything ?

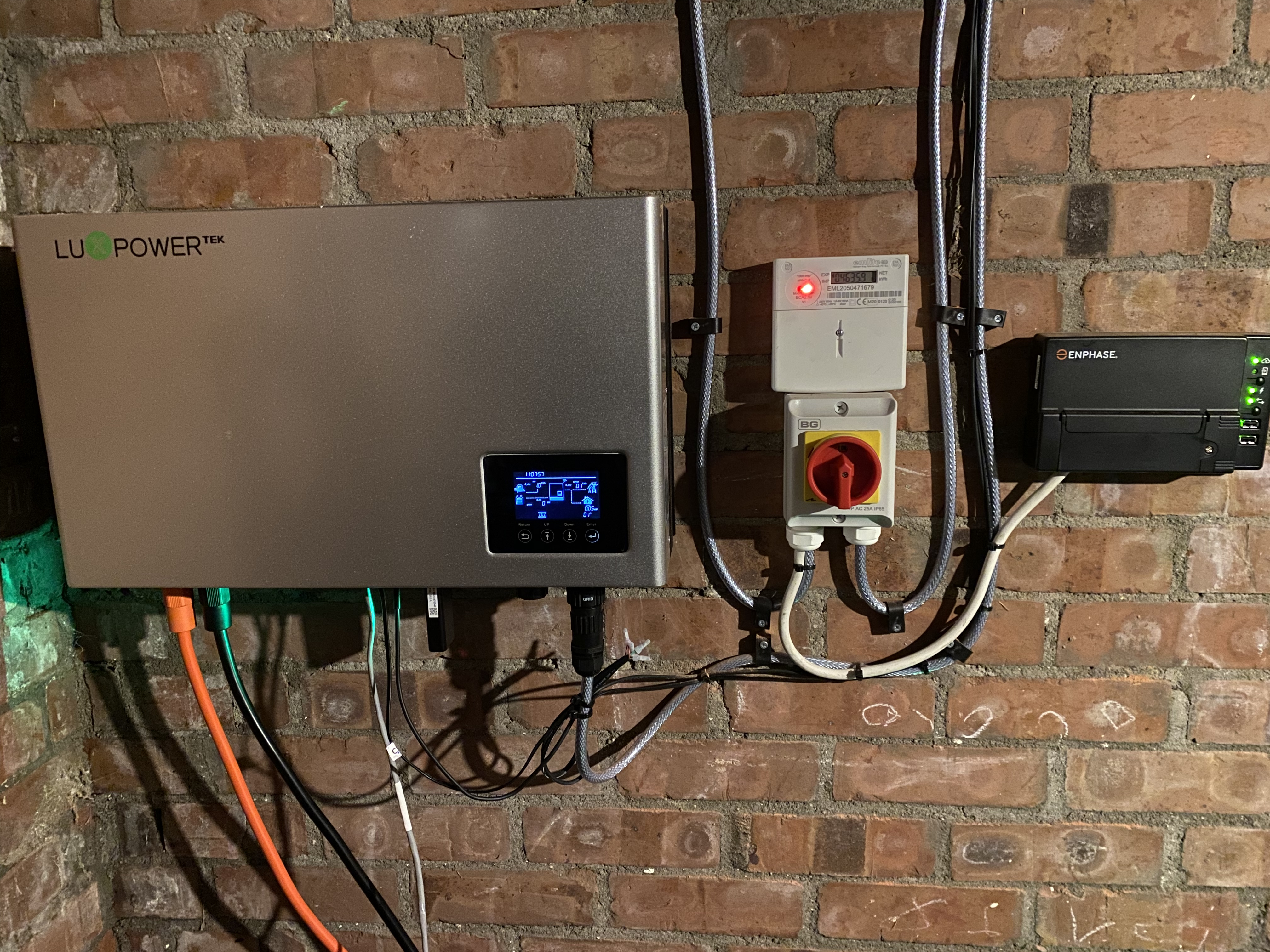

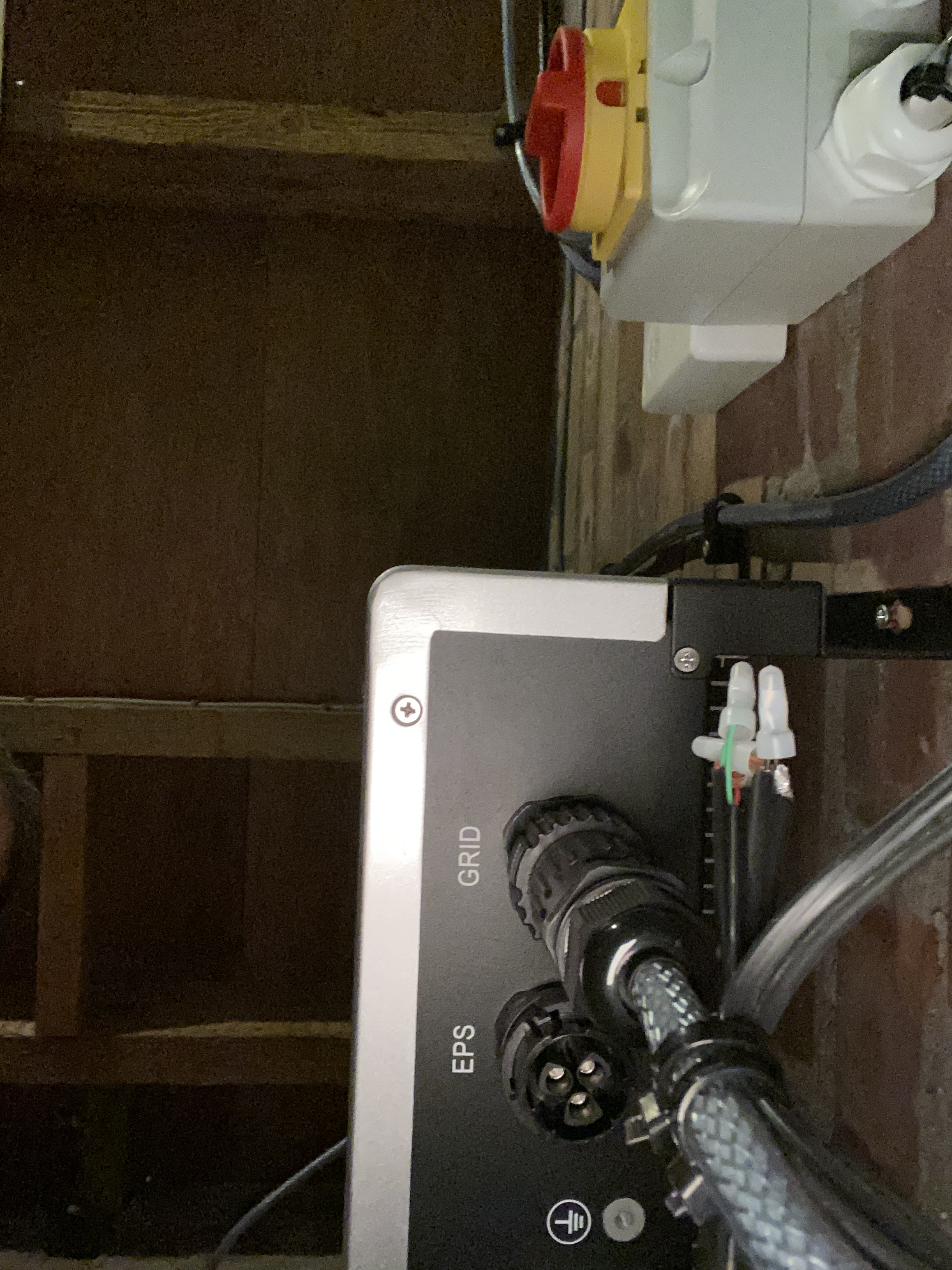

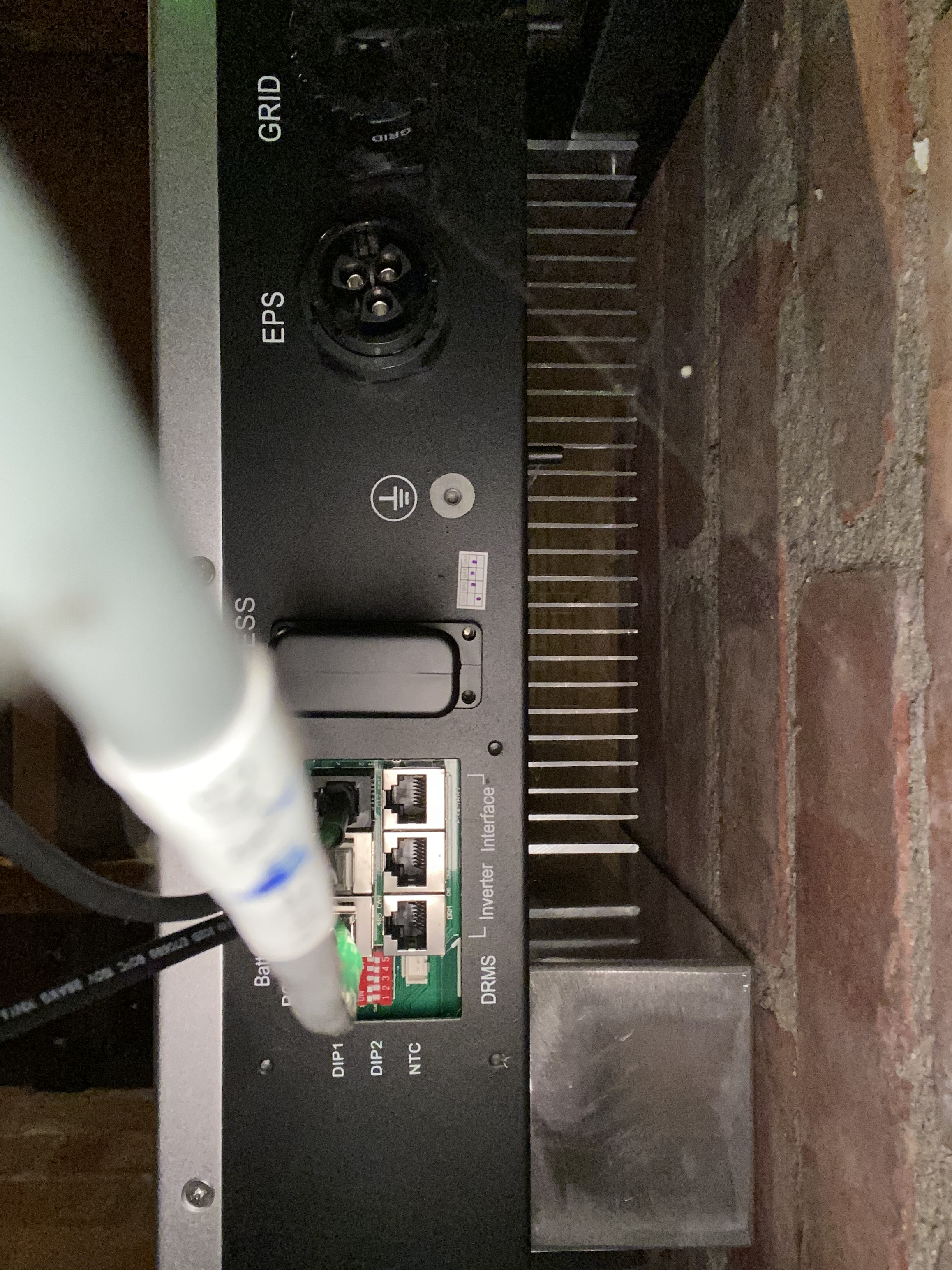

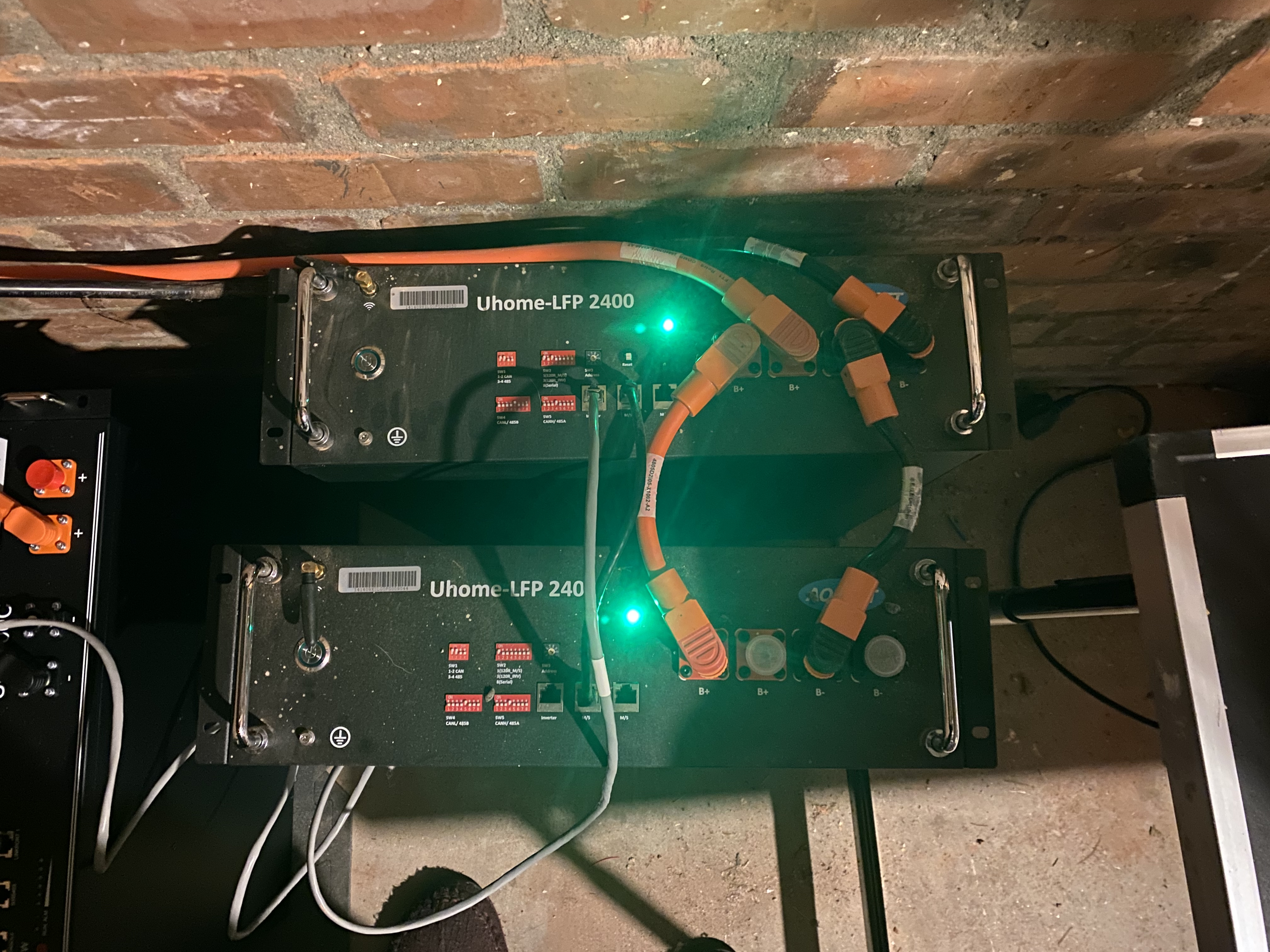

My set up but it’s still not showing the right info
——-
12 x JASolar 455w Panels (5.46kWp south facing array) Enphase Microinverters IQ7+, Lux AC ESS 3.6kW, 5 x 2.4kwh = 12kWh Plyontech US2000C Battery storage, Lochinver far North, west coast of Scotland0 -
Just checking, you seem to have got 'Charge' set to 'Disable' on the screen printout. Nothing will happen if that's the case.Solar PV System 1: 2.96kWp South+8 degrees. Roof 38 degrees. 'Normal' system
Solar PV System 2: 3.00kWp South-4 degrees. Roof 28 degrees. SolarEdge system
EV car, PodPoint charger
Lux LXP 3600 ACS + 6 x 2.4kWh Aoboet LFP 2400 battery storage. Installed Feb 2021
Location: Bedfordshire1 -
ill take a look can you let me now what number you set the aoboets at for that under the battery settings on the luxDave_Fowler said:Just checking, you seem to have got 'Charge' set to 'Disable' on the screen printout. Nothing will happen if that's the case.
——-
12 x JASolar 455w Panels (5.46kWp south facing array) Enphase Microinverters IQ7+, Lux AC ESS 3.6kW, 5 x 2.4kwh = 12kWh Plyontech US2000C Battery storage, Lochinver far North, west coast of Scotland0 -
Pylontech are type 2 and Aoboet are type 7.Starfrog said:
ill take a look can you let me now what number you set the aoboets at for that under the battery settings on the luxDave_Fowler said:Just checking, you seem to have got 'Charge' set to 'Disable' on the screen printout. Nothing will happen if that's the case.Solar PV System 1: 2.96kWp South+8 degrees. Roof 38 degrees. 'Normal' system
Solar PV System 2: 3.00kWp South-4 degrees. Roof 28 degrees. SolarEdge system
EV car, PodPoint charger
Lux LXP 3600 ACS + 6 x 2.4kWh Aoboet LFP 2400 battery storage. Installed Feb 2021
Location: Bedfordshire0 -
Changed it but makes no difference sent service request to Contact Solar to fix it——-
12 x JASolar 455w Panels (5.46kWp south facing array) Enphase Microinverters IQ7+, Lux AC ESS 3.6kW, 5 x 2.4kwh = 12kWh Plyontech US2000C Battery storage, Lochinver far North, west coast of Scotland0 -
I have no DC switch on my pylontech, didn't see the point as the switch on front kills the voltage (checked with meter) and if it failed I can pop off the DC connectors just as quickly as turning a switch.
Starfrog what does the display say, like 16, 32 etc etc is the wee face happy?
Also did you plug the comms cable into the CAN slot if the first battery in your stack?
Lux won't be happy with it anywhere elseWest central Scotland
4kw sse since 2014 and 6.6kw wsw / ene split since 2019
24kwh leaf, 75Kwh Tesla and Lux 3600 with 60Kwh storage0
