Installing New Hard Drive

basmic

loaner wrote: »

setting up the drive, and cloning, inside windows - would have been easier than hdclone, but as you've created the cd, you may as well try it, just make sure you have the source and destination drives the right way around.

If you want, you can guide Zebra through that - I'm chewing floppy disks up here, pesky things! :rotfl:

Zebra

ok i get it now

Seagate (new) is 5 and 6

fujitsu (old) is 7 and 8

does that make sense?

Zebra

i'll try the website first if you both think that will be easier

basmic

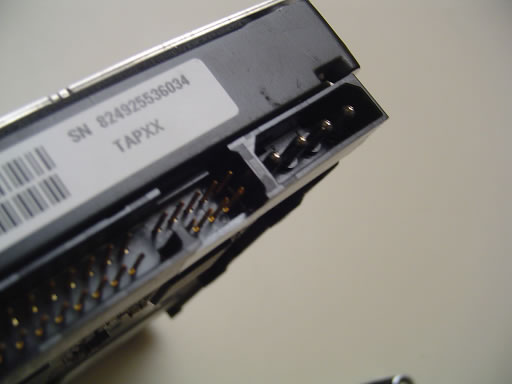

Look at the back of the drive, where you unplugged the cables. Those diagrams are meant to represent the rear of the drives!

For the Seagate, look to the left of where you pulled out the power cable (four wires on it, two black, one yellow and one red) - hopefully, you'll see some jumpers.



There!

Right next to the power plug, you can see the jumper pins.

Zebra

loaner wrote: »

The original hard disk will be set as a master (or cable select, effectively master), how are you plugging the second hard disk in, on the same ribbon cable in the middle, or on another one?

Edit if new drive is cable select, just stick it anywhere, switch on, and either run boot from hdclone cd, or install maxblast

same cable - new one on end , old one on the middle - is that correct?

do those jumper settings sound right?

Zebra

ok - i think i get it now
old one on the end - copy all data over - then new one on the end??

Zebra

ok - discs are in place - am i ready to swith on? what do i do with those jumper settings?

Zebra

ok - so i switch on and go into BIOS screen?

Zebra

haha - jumped the gun
gone into bios setting
there is an option for "IDE HDD AUTO DETECTION"
is that the one to select?

Zebra

ok

pri master =10 gb
pri slave = 160 gb

what next?
