Old Storage Heater. Releasing too fast by early morning. 1 thing changed recently

Scrounger

OpolE said:

Phones4Chris said:

Yes, multimeter job. Check if off-peak mains power is getting to the terminals in the bottom of the heater, is it then getting to the thermostat input control.
I'm reckoning the input control thermostat part is broken.
Need make and model to source the correct internal parts if it's a problem inside the heater.
Also -

OpolE said: Also there's quite a bit of flashing when its heating up, like mini lightning. Seen it years before too.

Where exactly is that coming from?

The lightning/flashing is literally seen all along the bottom on the parts that heat up

That sounds like the convector heater (booster) element which occupies the full width of heater at the bottom (easily visible with the case removed)  - it might just be dust burning off.   In any case, this won't be in use very often when @OpolE gets the storage section working.


Scrounger

Scrounger

LAP DC Digital Multimeter

http://www.screwfix.com/p/lap-dc-digital-multimeter-600v/793RT

@OpolE if you manage to get hold of a cheap multimeter I'll gladly tell you where to stick it.


Scrounger

Gerry1

Maximum Temperature 10°C !

Scrounger

Gerry1 said:

Maximum Temperature 10°C !

Bizarre!

User manual here: http://miravim.org/faculty/ckeller/Reference%20Materials/MAS830B%20DMM%20user%20manual.pdf

It even measures hfe (transistor gain)  - not that the op will need that function!

True RMS as well.

The only drawback is that its not auto-ranging but you can't have everything for £9.99


Scrounger

tamste

What time of day did your electrician check for current on the E7 storage heater circuit? Note this will generally only be live during the E7 period (controlled by switched contactor box), so unless he checked it in the middle of the night, he will not get any current showing. :-)

OpolE

All my power is back in the right areas in the fuse box and is still working as normal.

The start of the internal wire going into the heater heats up but it doesn't activate the other ones going into the node.

As I was looking at why, parts were crumbling and just seem old as discussed before the day rate is flashing sparks

SO I AM SOURCING A USED 2ND HAND ONE LOCALLY.

There's 2 but one seller doesn't know the year for the DIMPLEX one

So I have to work out visually if they post date the asbestos era.

Dimplex was founded in the 1950's

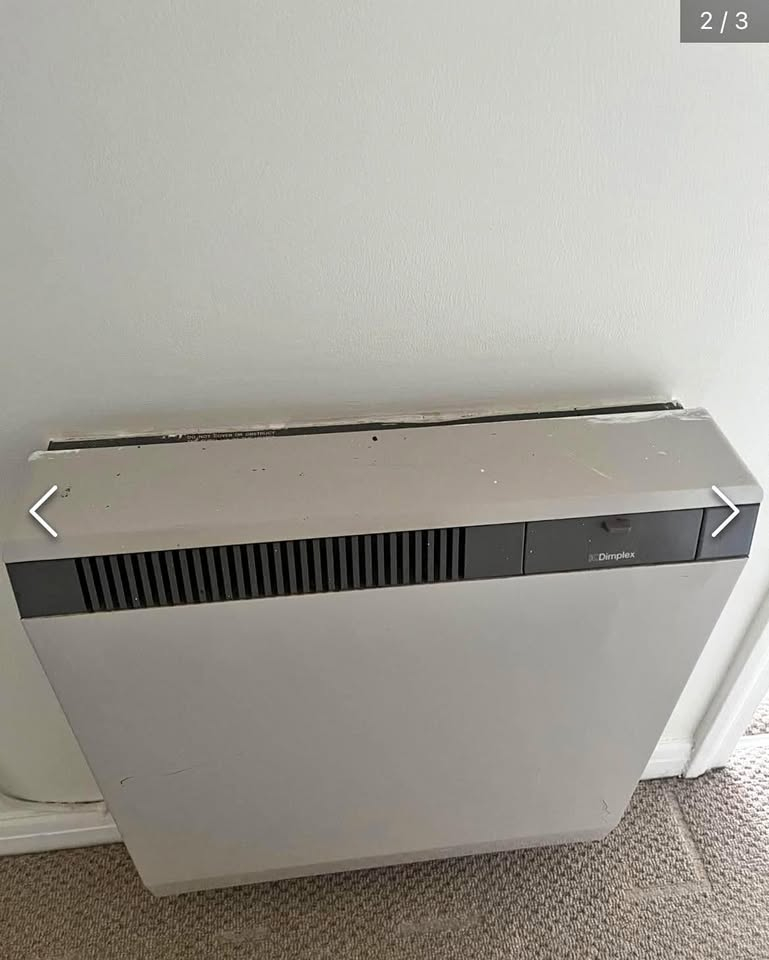

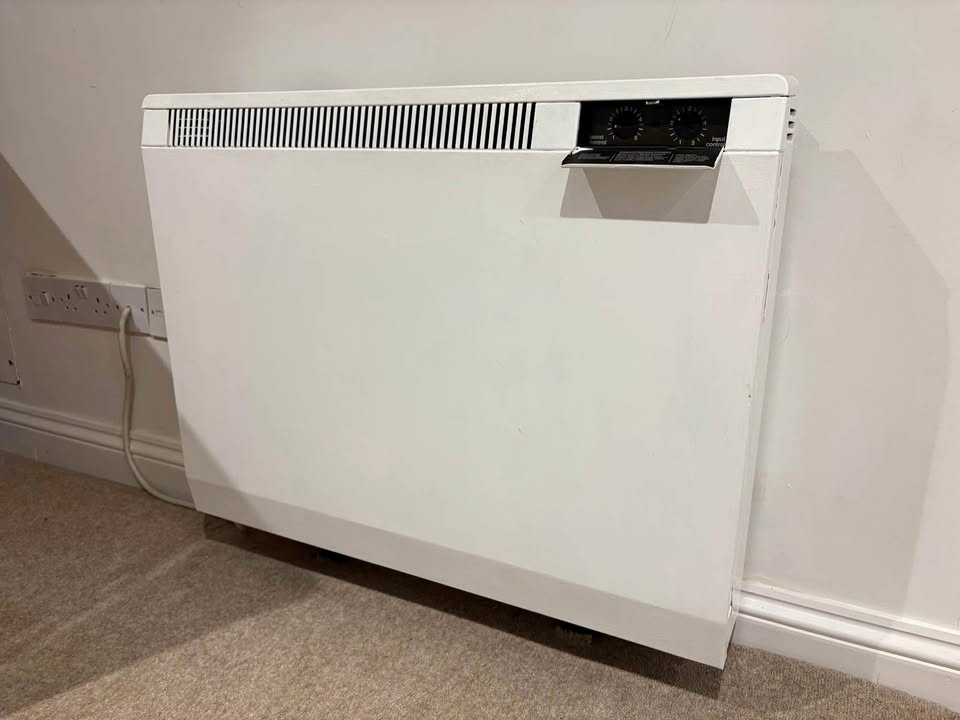

Pics below

@[Deleted User] @EssexHebridean @Scrounger @Gerry1 @lohr500 @Phones4Chris @tim_p @tamste

Phones4Chris

The first one is pre-historic, you want the 2nd one, no question about that.

Rosie1001

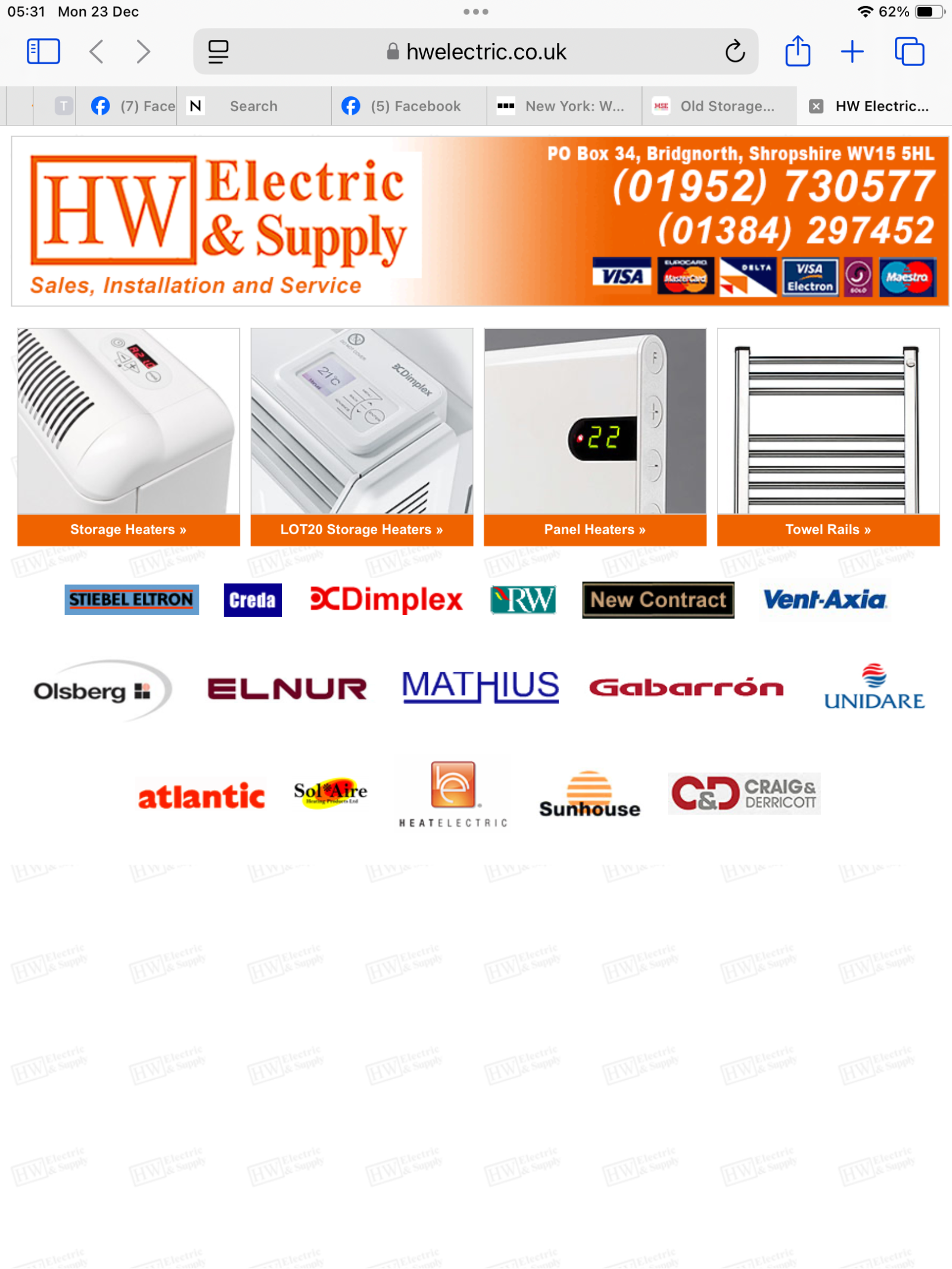

Give these guys a ring … very knowledgeable and sell reconditioned heaters … they will ship to you as well ….

Rosie1001

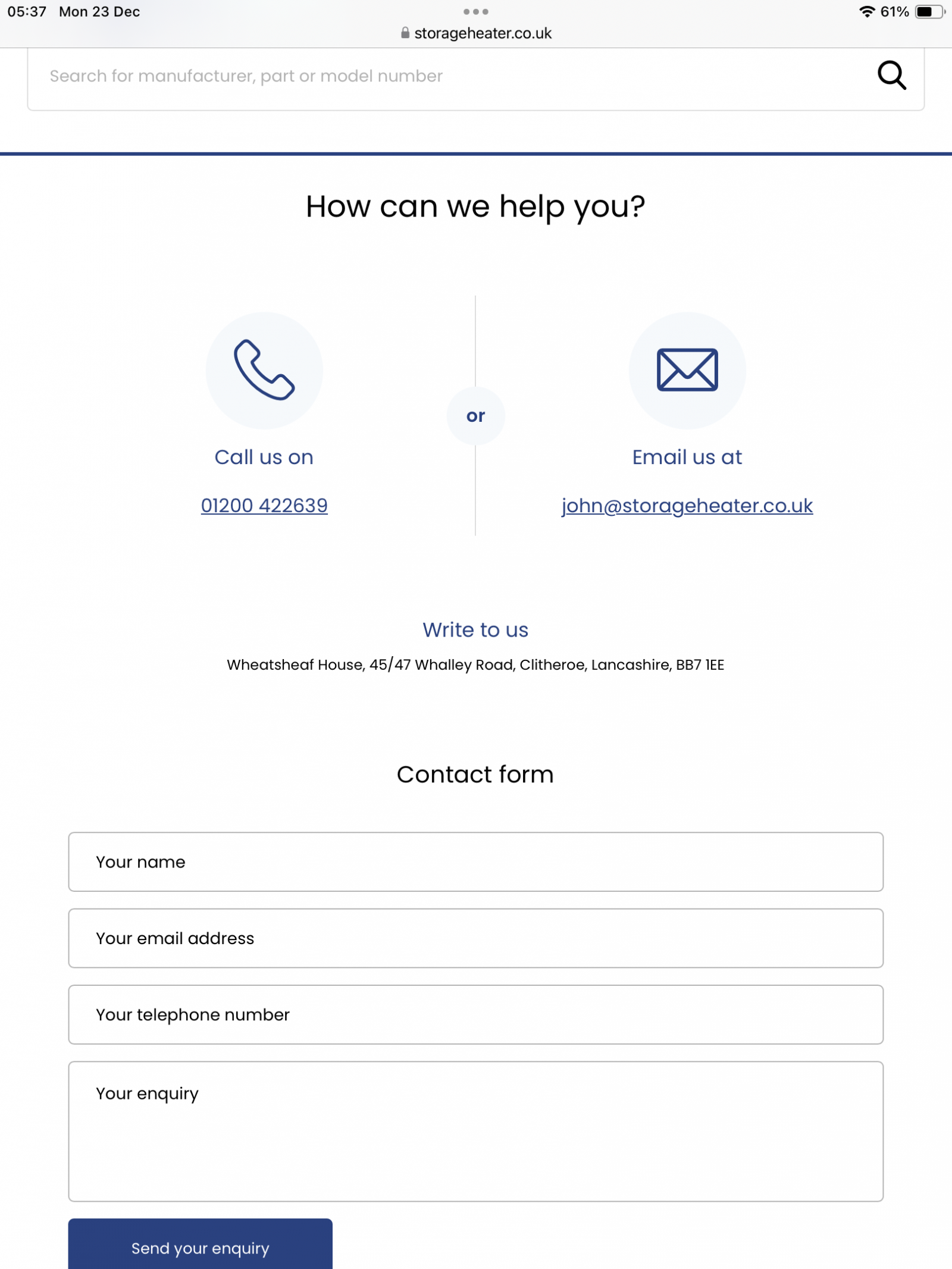

I used this guy for my parts for my dimplex heater ..he is so knowledgeable and helpful

Scrounger

OpolE said:

All my power is back in the right areas in the fuse box and is still working as normal.

SO I AM SOURCING A USED 2ND HAND ONE LOCALLY.

I agree with @Phones4Chris, this is the one you want (incidentally, no asbestos in either of them).

Good to hear you are getting sorted out and thank you for the update.
