Boxing in boiler

ceewash

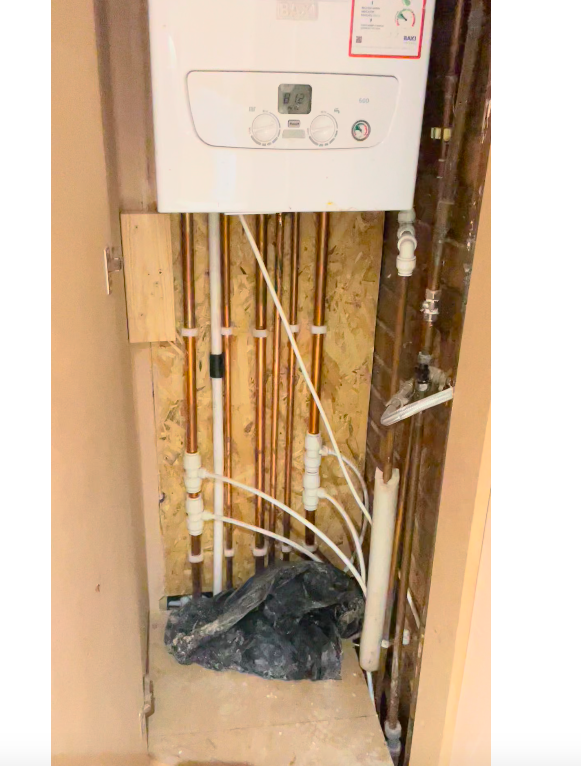

If I can get the pipes neater then I'm hoping an ikea unit will fit over it all. I hate the chunky mdf look.

JohnB47

ceewash said:

diystarter7 said:

btw, where is the magnet thing that protects boiler etc?

once painted/tidy up it will look ok

Not sure what you mean?

I think he means one of this type of thing, often a guarantee requires one to be fitted :

https://www.toolstation.com/corgi-22mm-inline-magnetic-central-heating-filter/p72401

diystarter7

JohnB47 said:

ceewash said:

diystarter7 said:

btw, where is the magnet thing that protects boiler etc?

once painted/tidy up it will look ok

Not sure what you mean?

I think he means one of this type of thing, often a guarantee requires one to be fitted :

https://www.toolstation.com/corgi-22mm-inline-magnetic-central-heating-filter/p72401

Thank you, I did and more of the same below - saves boiler CH

https://www.google.com/search?q=boiler+magnetic+filter&rlz=1C1CHBF_en-GBGB925GB925&ei=mp24Y_b5HZDbgQbe3rH4Aw&oq=boiler+mag&gs_lcp=Cgxnd3Mtd2l6LXNlcnAQARgAMgUIABCABDIFCAAQgAQyBQgAEIAEMgUIABCABDIFCAAQgAQyBQgAEIAEMgUIABCABDIFCAAQgAQyBQgAEIAEMgUIABCABDoLCAAQsQMQgwEQkQI6FAguEIAEELEDEIMBEMcBENEDENQCOgsIABCABBCxAxCDAToRCC4QgAQQsQMQgwEQxwEQ0QM6CAgAELEDEIMBOg4ILhCABBCxAxDHARDRAzoLCC4QxwEQrwEQkQI6CAguENQCEJECOg4ILhDHARCxAxDRAxCABDoFCC4QgAQ6CAgAEIAEELEDOgUIABCRAjoRCC4QgAQQsQMQgwEQxwEQrwE6CAguEIAEELEDOgsIABCABBCxAxDJAzoQCC4QgAQQsQMQxwEQrwEQCjoICAAQgAQQyQNKBAhBGABKBAhGGABQAFiVF2DRK2gAcAB4AIABiQKIAaQIkgEFNy4yLjGYAQCgAQHAAQE&sclient=gws-wiz-serp

MikeJXE

Does he mean the magnetic filter ? I'm not a plumber so only guessing

ThisIsWeird

ceewash said:

dil1976 said:

ThisIsWeird said:

With plastic microbore, you want to avoid as many elbows as possible, so the 'untidy' look is more practical and probably more efficient too. Hard to know if/how they could be tidied without seeing a wider photo.

As for the MDF boxing, again I'm struggling to see what it actually looks like, or how it could be improved - so a wider photo here would help too. If the plumber did this, then I guess that explains a lot

Well then if it needs to be neater fit copper pipe rather than making it look like it has been thrown in from the other side of the house. I can not believe someone would leave something like that, that would be on display.

Thank you for this . It confirms what I thought. If the pipes were tidied up we could get a slimmer unit of some sort to box it in and so gain a bit more space. The MDF cupboard has been built on an angle that just encases all the pipes.

I wasn't seeing that angled fitting on my phone pic - wow, that's just hellish.

A wider shot of the plumbing to show where the pipes disappear to would help determine how much slimmer the installation could be made. And, as you suggest, after the panel is squared off, it could be disguised as a shelving unit or similar - with the proviso that it can be easily dismantled.

Where's the actual boiler - is that partially sunk into the wall?

ceewash

The boiler is above the pipes, not sunk in.

ThisIsWeird

It's in a recess or cupboard, tho'? - that's what I meant. It looks well set in - I can't work out why the panel is at an angle.

ceewash

There was no room to box it across because of door into the room. The angled thing was to enclose all the pipes, those at side as well. There just seems so many pipes!

ThisIsWeird

Any chance of a quick sketch to show this in plan view - I just can't fully work out what's going on?

ceewash

The sketch is not to scale so you might not see how tight the space is.
