Lux ac battery controller

Options
1…5354565859…202

Comments

  • Solarchaser
    Solarchaser Posts: 1,758 Forumite
    Sixth Anniversary 1,000 Posts Name Dropper
    Tbh mate it's just a guess.
    I'll know tomorrow if it's worked, and if so I'll mess about while it's running to make sure it is that causing it
    West central Scotland
    4kw sse since 2014 and 6.6kw wsw / ene split since 2019
    24kwh leaf, 75Kwh Tesla and Lux 3600 with 60Kwh storage
  • EVandPV
    EVandPV Posts: 2,112 Forumite
    Fifth Anniversary 1,000 Posts Name Dropper
    mickyduck55 said:
    "I'd set my mains charging at 55% so I believe it's took that figure for solar too."
    Interesting.. I have mine set at 80%.. is there a way to check or do I have to just watch it .. not likely tomorrow looking at my forecast !
    "system charge power rate" is your pv charge rate and "AC charge power rate" is your grid charge rate.
    Just noticed my ac rate has been set back to 100%. I set it to 50% a while ago.


    Scott in Fife, 2.9kwp pv SSW facing, 2.7kw Fronius inverter installed Jan 2012 - 14.3kwh Seplos Mason battery storage with Lux ac controller - Renault Zoe 40kwh, Corsa-e 50kwh, Zappi EV charger and Octopus Go
  • mickyduck55
    mickyduck55 Posts: 676 Forumite
    Fifth Anniversary 500 Posts Name Dropper
    Thanks System set at 100% and AC at 80%
    3.995kWP SSW facing. Commissioned 7 July 2011. 24 degree pitch (£3.36 /W).
    17 Yingli 235 panels
    Sunnyboy 4000TL inverter
    Sunny Webox
    Solar Immersion installed May 2013, after two Solar Immersion lasting just over the guarantee period replaced with Solic 200... no problems since.

    13 Feb 2020 LUX AC 3600 and 3 X Pylon Tech 3.5 kW batteries added...

    20 January 2024 Daikin ASHP installed
  • Solarchaser
    Solarchaser Posts: 1,758 Forumite
    Sixth Anniversary 1,000 Posts Name Dropper
    EVandPV said:
    mickyduck55 said:
    "I'd set my mains charging at 55% so I believe it's took that figure for solar too."
    Interesting.. I have mine set at 80%.. is there a way to check or do I have to just watch it .. not likely tomorrow looking at my forecast !
    "system charge power rate" is your pv charge rate and "AC charge power rate" is your grid charge rate.
    Just noticed my ac rate has been set back to 100%. I set it to 50% a while ago.


    No system charge power rate on my app mate, only ac and priority
    West central Scotland
    4kw sse since 2014 and 6.6kw wsw / ene split since 2019
    24kwh leaf, 75Kwh Tesla and Lux 3600 with 60Kwh storage
  • EVandPV
    EVandPV Posts: 2,112 Forumite
    Fifth Anniversary 1,000 Posts Name Dropper
    Solarchaser said:
    EVandPV said:
    mickyduck55 said:
    "I'd set my mains charging at 55% so I believe it's took that figure for solar too."
    Interesting.. I have mine set at 80%.. is there a way to check or do I have to just watch it .. not likely tomorrow looking at my forecast !
    "system charge power rate" is your pv charge rate and "AC charge power rate" is your grid charge rate.
    Just noticed my ac rate has been set back to 100%. I set it to 50% a while ago.


    No system charge power rate on my app mate, only ac and priority
    Jeezo, what else have they removed from the app ?? 🤦

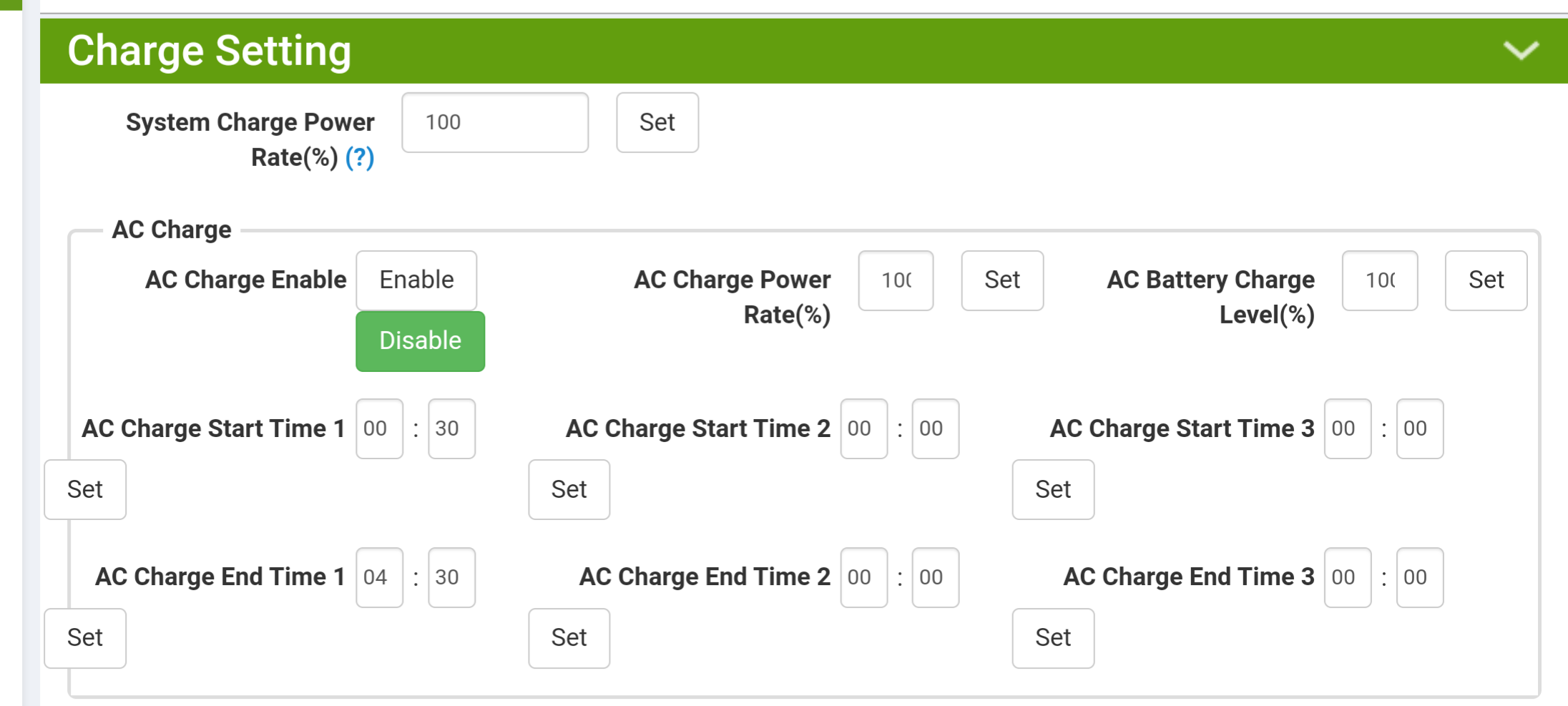

    That screenshot was from the web portal settings.
    I see system charge rate is still available on the app in local connect mode though.
    Scott in Fife, 2.9kwp pv SSW facing, 2.7kw Fronius inverter installed Jan 2012 - 14.3kwh Seplos Mason battery storage with Lux ac controller - Renault Zoe 40kwh, Corsa-e 50kwh, Zappi EV charger and Octopus Go
  • mickyduck55
    mickyduck55 Posts: 676 Forumite
    Fifth Anniversary 500 Posts Name Dropper
    edited 22 May 2021 at 9:01PM

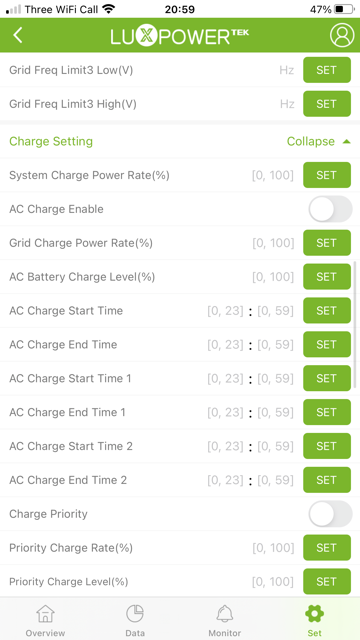

    My App on iPhone still has "System" and "grid charge power rate" ?
    3.995kWP SSW facing. Commissioned 7 July 2011. 24 degree pitch (£3.36 /W).
    17 Yingli 235 panels
    Sunnyboy 4000TL inverter
    Sunny Webox
    Solar Immersion installed May 2013, after two Solar Immersion lasting just over the guarantee period replaced with Solic 200... no problems since.

    13 Feb 2020 LUX AC 3600 and 3 X Pylon Tech 3.5 kW batteries added...

    20 January 2024 Daikin ASHP installed
  • EVandPV
    EVandPV Posts: 2,112 Forumite
    Fifth Anniversary 1,000 Posts Name Dropper
    mickyduck55 said:
    My App on iPhone still has "System" and "grid charge power rate" ?
    The Android version seems to be missing system charge rate when connected over the net but it's still there in local mode when you connect your device directly to the data logger.
    Scott in Fife, 2.9kwp pv SSW facing, 2.7kw Fronius inverter installed Jan 2012 - 14.3kwh Seplos Mason battery storage with Lux ac controller - Renault Zoe 40kwh, Corsa-e 50kwh, Zappi EV charger and Octopus Go
  • Solarchaser
    Solarchaser Posts: 1,758 Forumite
    Sixth Anniversary 1,000 Posts Name Dropper
    edited 22 May 2021 at 9:20PM
    Cheers guys I'll go through web portal and sort it 👍

    Edit, yeah both were set to 55%.
    I certainly never set it 🙄
    West central Scotland
    4kw sse since 2014 and 6.6kw wsw / ene split since 2019
    24kwh leaf, 75Kwh Tesla and Lux 3600 with 60Kwh storage
  • Solarchaser
    Solarchaser Posts: 1,758 Forumite
    Sixth Anniversary 1,000 Posts Name Dropper
    Solar for either never went above 2kw today... but the wife has managed to use 35kwh on leccy 😯😯😯
    Batteries flat 1 hour before lower tarrif 😥
    West central Scotland
    4kw sse since 2014 and 6.6kw wsw / ene split since 2019
    24kwh leaf, 75Kwh Tesla and Lux 3600 with 60Kwh storage
  • Solarchaser
    Solarchaser Posts: 1,758 Forumite
    Sixth Anniversary 1,000 Posts Name Dropper
    So for those interested, I charged up a few kwh in the low cost period last night, and reduced ac charge rate to 50% at 1700w.

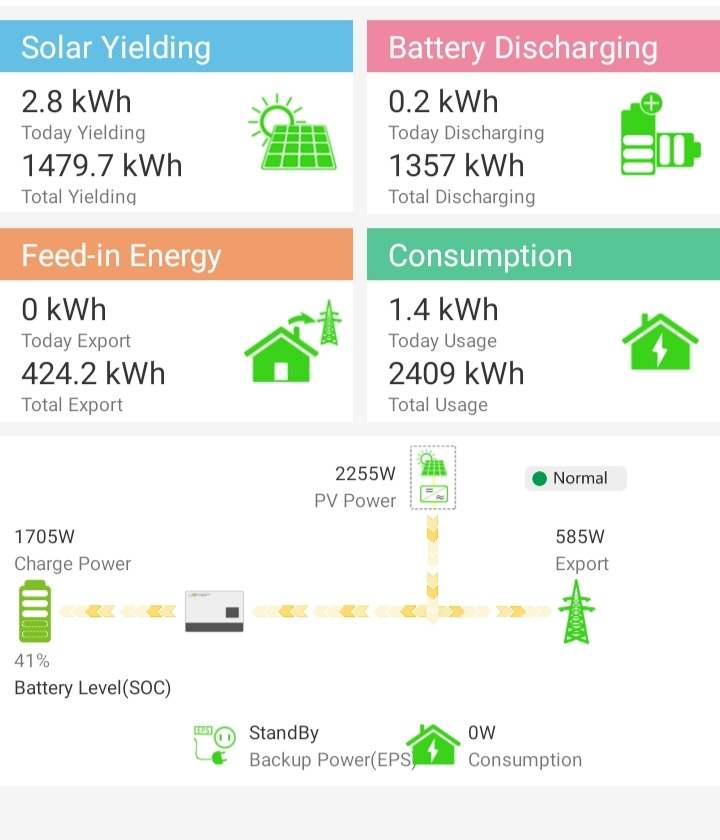

    Today, low and behold the charge rate is 1700w from solar and exporting

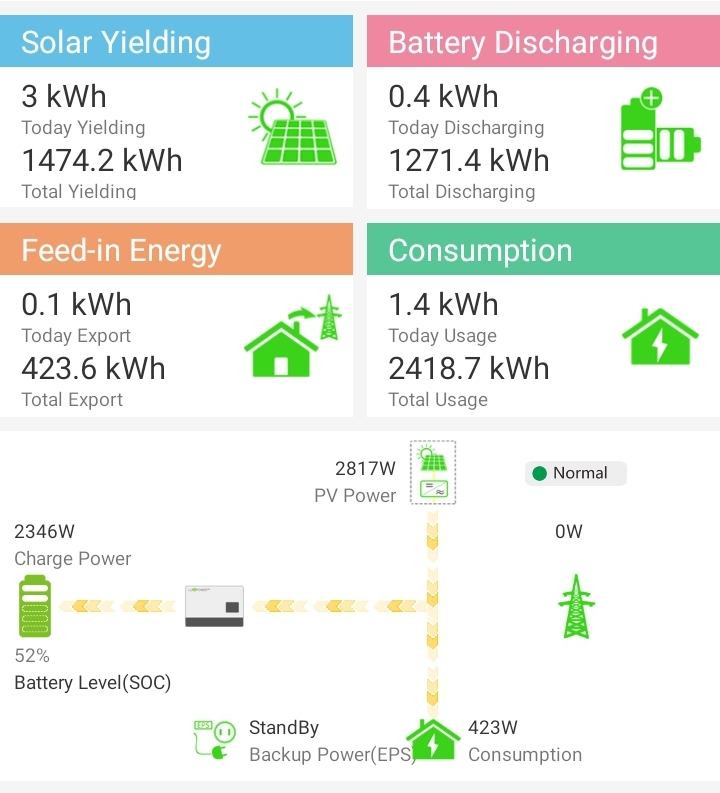

    Changed ac charge rate back to 100 and normal charging resumes


    I'll ping Canhao an email
    West central Scotland
    4kw sse since 2014 and 6.6kw wsw / ene split since 2019
    24kwh leaf, 75Kwh Tesla and Lux 3600 with 60Kwh storage
