EV Cabling

Albert0500

Hi everybody,

I'm hoping to get an EV charger fitted, but my Consumer Board is in the middle of the house under the stairs.

Is it possible to run the cables in the house and is there a good way to hide them, also once the cable goes outside it will need to be armoured cable, will the internal cable need to be armoured?

Hope that makes sense, thanks for reading!

Peter999_2

Hi,  my parents had the same thing where their smart meter was in the middle of the house.   I thought it would cause an issue, but when the guy came he didn't even blink.    He routed it upstairs to the loft then across the loft and down to the wall.    Do you have a route up to the loft from the cupboard or anything like that?

We did try to get someone to come out and check it first, but people just weren't interested/didn't turn up.

In the end we went through Currys who routed us through Ohme (I wanted a company like currys for me to complain to if it went wrong).    Ohme got me to fill in a form and make a drawing of where the meter was and where the charger went.   They also wanted a video and I obliged.

We had to pay the £900 (something like that) upfront on the understanding it would be refunded if they couldn't do it or wanted to charge a lot extra.

In the end it took the guy about 2 hours and he didn't charge any extra.

born_again

Albert0500 said:

Hi everybody,

I'm hoping to get an EV charger fitted, but my Consumer Board is in the middle of the house under the stairs.

Is it possible to run the cables in the house and is there a good way to hide them, also once the cable goes outside it will need to be armoured cable, will the internal cable need to be armoured?

Hope that makes sense, thanks for reading!

EV charger does not need to be wired to consumer board.
They are far better being wired as a separate circuit from the meter supply.

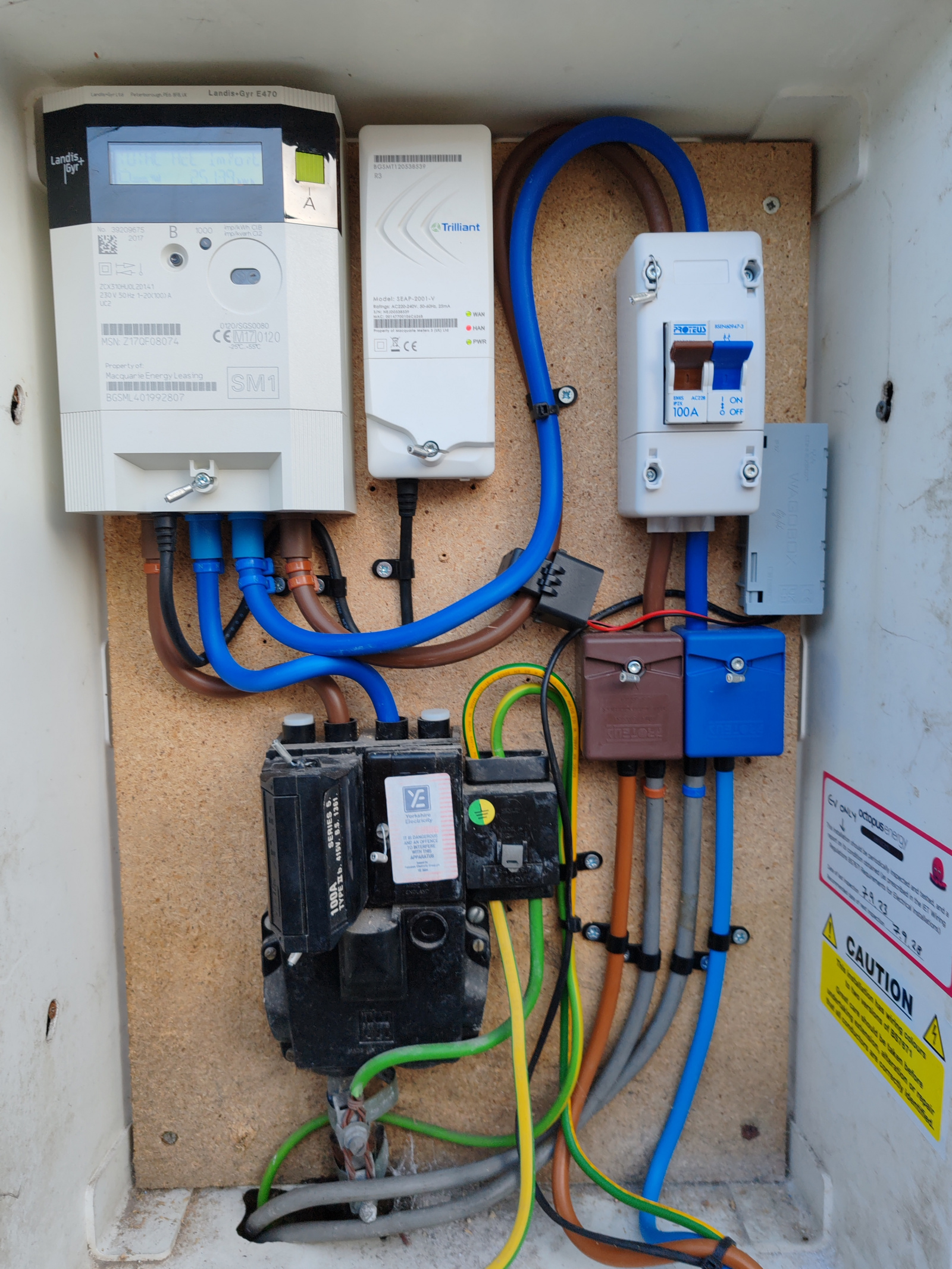

Such as below, all down the righthand side of meterbox.

Albert0500

Peter999_2 said:

Hi,  my parents had the same thing where their smart meter was in the middle of the house.   I thought it would cause an issue, but when the guy came he didn't even blink.    He routed it upstairs to the loft then across the loft and down to the wall.    Do you have a route up to the loft from the cupboard or anything like that?

We did try to get someone to come out and check it first, but people just weren't interested/didn't turn up.

In the end we went through Currys who routed us through Ohme (I wanted a company like currys for me to complain to if it went wrong).    Ohme got me to fill in a form and make a drawing of where the meter was and where the charger went.   They also wanted a video and I obliged.

We had to pay the £900 (something like that) upfront on the understanding it would be refunded if they couldn't do it or wanted to charge a lot extra.

In the end it took the guy about 2 hours and he didn't charge any extra.

Thanks, our loft is a bedroom so no option there, I think we would need to hide the cable in conduit but that can look ugly, did they use armoured cable for the whole job, even internal?

YBR

We have a similar situation.

There is a junction box on the outside wall, the internal cable comes in through the wall (above the front door), over the doorway to the living room, along the side of the stairwell (there is a beam it runs under), and through the stairs down into the under-stairs cupboard that the meters are in.

Owing partly to our PodPoint being fitted during the pandemic, we fitted the internal cable ourselves on the advice of the PodPoint electrician. IIRC the internal cable is not armoured, he told us what spec to get. He then returned, supplied/fitted the external cable and charge unit, and made all the connections and did the safety checks etc.

Albert0500

born_again said:

Albert0500 said:

Hi everybody,

I'm hoping to get an EV charger fitted, but my Consumer Board is in the middle of the house under the stairs.

Is it possible to run the cables in the house and is there a good way to hide them, also once the cable goes outside it will need to be armoured cable, will the internal cable need to be armoured?

Hope that makes sense, thanks for reading!

EV charger does not need to be wired to consumer board.
They are far better being wired as a separate circuit from the meter supply.
Such as below, all down the righthand side of meterbox.

Thanks, understood, our Consumer Board and Meter are next to each other under the stairs

Albert0500

Think key for me is the internal cables not needing to be armoured makes all the difference to made it tidy, if that is the case.

Peter999_2

Albert0500 said:

Peter999_2 said:

Hi,  my parents had the same thing where their smart meter was in the middle of the house.   I thought it would cause an issue, but when the guy came he didn't even blink.    He routed it upstairs to the loft then across the loft and down to the wall.    Do you have a route up to the loft from the cupboard or anything like that?

We did try to get someone to come out and check it first, but people just weren't interested/didn't turn up.

In the end we went through Currys who routed us through Ohme (I wanted a company like currys for me to complain to if it went wrong).    Ohme got me to fill in a form and make a drawing of where the meter was and where the charger went.   They also wanted a video and I obliged.

We had to pay the £900 (something like that) upfront on the understanding it would be refunded if they couldn't do it or wanted to charge a lot extra.

In the end it took the guy about 2 hours and he didn't charge any extra.

Thanks, our loft is a bedroom so no option there, I think we would need to hide the cable in conduit but that can look ugly, did they use armoured cable for the whole job, even internal?

It wasn't armoured cable on the inside of the house, but was armoured outside.    On the way from the meter it is in neat trunking all the way through the loft.

it doesn't really look too much out of place, even in the loft as he made quite a neat job.

Albert0500

Peter999_2 said:

Albert0500 said:

Peter999_2 said:

Hi,  my parents had the same thing where their smart meter was in the middle of the house.   I thought it would cause an issue, but when the guy came he didn't even blink.    He routed it upstairs to the loft then across the loft and down to the wall.    Do you have a route up to the loft from the cupboard or anything like that?

We did try to get someone to come out and check it first, but people just weren't interested/didn't turn up.

In the end we went through Currys who routed us through Ohme (I wanted a company like currys for me to complain to if it went wrong).    Ohme got me to fill in a form and make a drawing of where the meter was and where the charger went.   They also wanted a video and I obliged.

We had to pay the £900 (something like that) upfront on the understanding it would be refunded if they couldn't do it or wanted to charge a lot extra.

In the end it took the guy about 2 hours and he didn't charge any extra.

Thanks, our loft is a bedroom so no option there, I think we would need to hide the cable in conduit but that can look ugly, did they use armoured cable for the whole job, even internal?

It wasn't armoured cable on the inside of the house, but was armoured outside.    On the way from the meter it is in neat trunking all the way through the loft.

it doesn't really look too much out of place, even in the loft as he made quite a neat job.

Thanks, very helpful

Mildly_Miffed

Albert0500 said:

I'm hoping to get an EV charger fitted, but my Consumer Board is in the middle of the house under the stairs.

Is it possible to run the cables in the house and is there a good way to hide them, also once the cable goes outside it will need to be armoured cable, will the internal cable need to be armoured?

To answer your question would need knowledge of your house.

Yes, it's eminently possible. The question is how much work is needed, and how much making-good of decor afterwards.

No, it doesn't need to be armoured unless there's a risk of physical damage to them, as there is outside.

Bigwheels1111

My friend had the same issue, also had bedroom conversion in the loft.

He was lucky as had a half height basement as such, a 3ft void under the floor.

So we drilled a hole ( well me as I'm shorter ) in the floor and front house wall and ran cable clips to the front of the house where he wanted the charger to be placed. The fitter was well pleased.
