Need to replace electric loft hatch belt - Measure size?

powerful_Rogue
powerful_Rogue Posts: 8,491 Forumite
Part of the Furniture 1,000 Posts Name Dropper
in In my home (includes DIY) MoneySaving
Afternoon all,

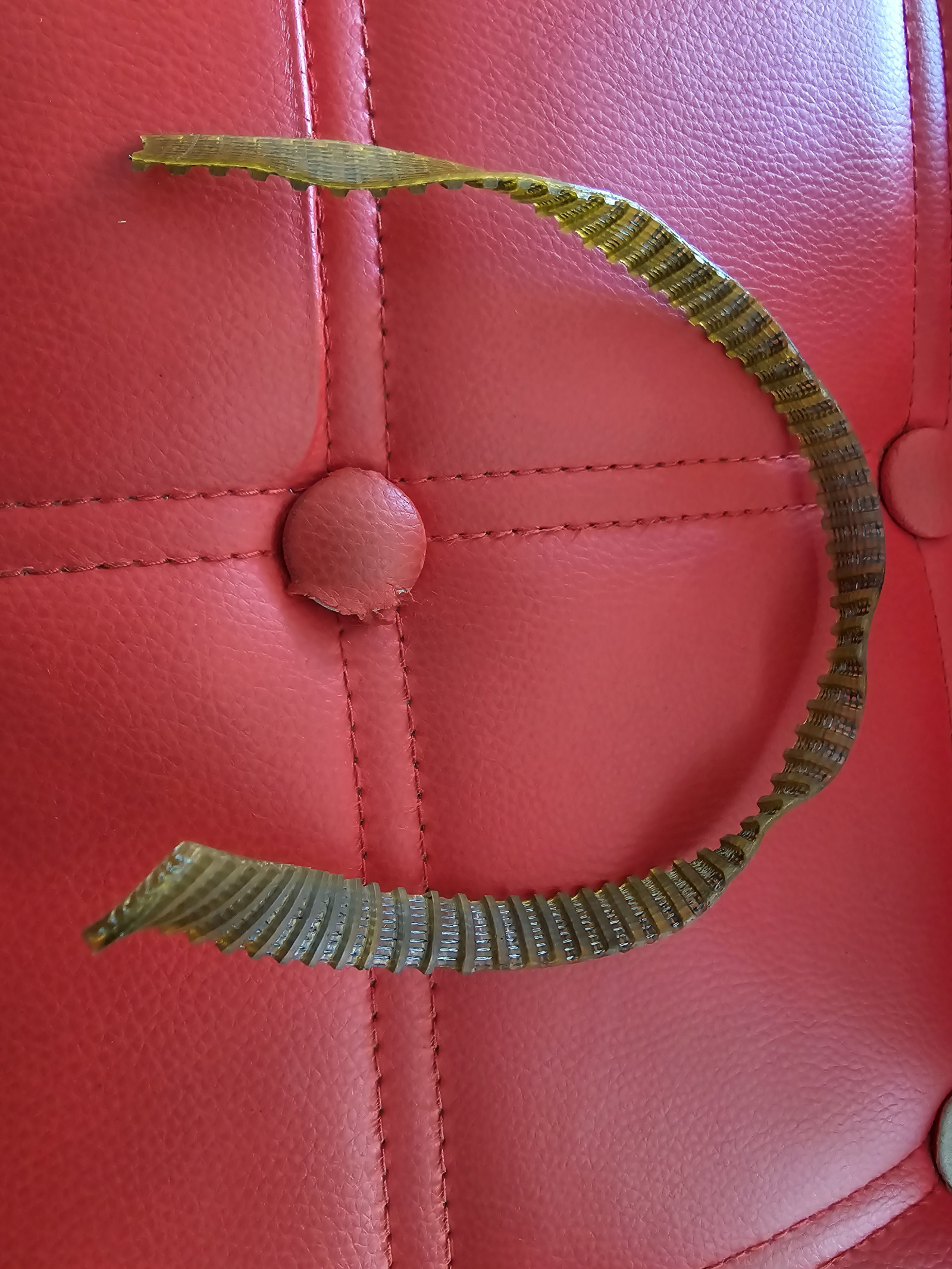

I need to replace the belt which opens the motorised loft hatch. It's stretched so keeps coming off.

Just need to work out how I find out what size I need to order and whether these kind of belts have a particular name at all?
(I had to cut it to get it off)

Thanks in advance


«1

Comments

  • FreeBear
    FreeBear Posts: 18,306 Forumite
    Tenth Anniversary 10,000 Posts Name Dropper Photogenic
    There are a whole raft of different toothed belts. The pitch of the teeth and the profile varies. But it looks like you have a fairly "standard" one. Best bet is to visit a local bearing supplier and take the old belt with you.
    Any language construct that forces such insanity in this case should be abandoned without regrets. –
    Erik Aronesty, 2014

    Treasure the moments that you have. Savour them for as long as you can for they will never come back again.
  • Ganga
    Ganga Posts: 4,253 Forumite
    Part of the Furniture 1,000 Posts Name Dropper
    Most have the size and make on the back .
  • ThisIsWeird
    ThisIsWeird Posts: 7,935 Forumite
    1,000 Posts Second Anniversary Name Dropper
    Is there a reason you haven't asked the unit's manufacturer?
    Do you know the make and model?

  • powerful_Rogue
    powerful_Rogue Posts: 8,491 Forumite
    Part of the Furniture 1,000 Posts Name Dropper
    Ganga said:
    Most have the size and make on the back .

    Nothing on the back of the belt sadly.
  • powerful_Rogue
    powerful_Rogue Posts: 8,491 Forumite
    Part of the Furniture 1,000 Posts Name Dropper
    ThisIsWeird said:
    Is there a reason you haven't asked the unit's manufacturer?
    Do you know the make and model?


    Will get back up in the loft today and have a look for some details.
  • Slinky
    Slinky Posts: 11,273 Forumite
    Part of the Furniture 10,000 Posts Photogenic Name Dropper
    Well you learn something new every day. I've never heard of an electric loft opener before.
    Make £2025 in 2025
    Prolific £841.95, Octopoints £6.64, TCB £456.58, Tesco Clubcard challenges £89.90, Misc Sales £321, Airtime £60, Shopmium £52.74, Everup £95.64 Zopa CB £30
    Total (1/11/25) £1954.45/£2025 96%

    Make £2024 in 2024
    Prolific £907.37, Chase Int £59.97, Chase roundup int £3.55, Chase CB £122.88, Roadkill £1.30, Octopus ref £50, Octopoints £70.46, TCB £112.03, Shopmium £3, Iceland £4, Ipsos £20, Misc Sales £55.44
    Total £1410/£2024 70%

    Make £2023 in 2023 Total: £2606.33/£2023 128.8%




  • ThisIsWeird
    ThisIsWeird Posts: 7,935 Forumite
    1,000 Posts Second Anniversary Name Dropper
    Nor me, but now I want one. Even tho' I don't have a loft.
  • powerful_Rogue
    powerful_Rogue Posts: 8,491 Forumite
    Part of the Furniture 1,000 Posts Name Dropper

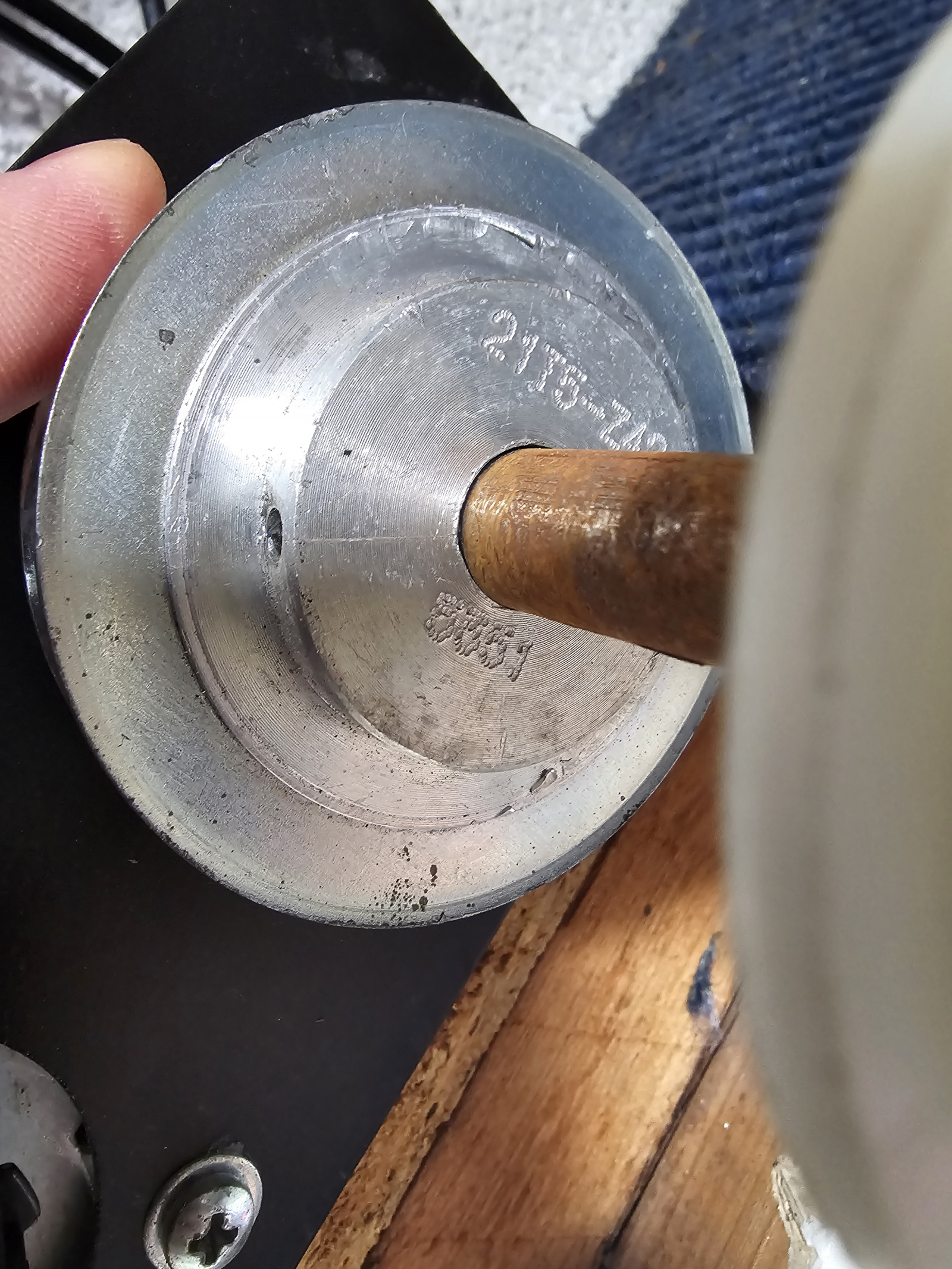

    Went up and took some pictures of the markings I could see, but sadly no luck googling online - Unless they mean anything to anyone else!
  • BarelySentientAI
    BarelySentientAI Posts: 2,448 Forumite
    1,000 Posts Name Dropper
    21T5-V42 is a timing wheel pully specification I think.

    42 teeth, T5 metric profile, 21mm pulley (probably 10mm belt).

    I could be wrong though
  • powerful_Rogue
    powerful_Rogue Posts: 8,491 Forumite
    Part of the Furniture 1,000 Posts Name Dropper
    BarelySentientAI said:
    21T5-V42 is a timing wheel pully specification I think.

    42 teeth, T5 metric profile, 21mm pulley (probably 10mm belt).

    I could be wrong though

    Thanks, I shall look into that.
