Sharp TV - what causes this?

ThisIsWeird

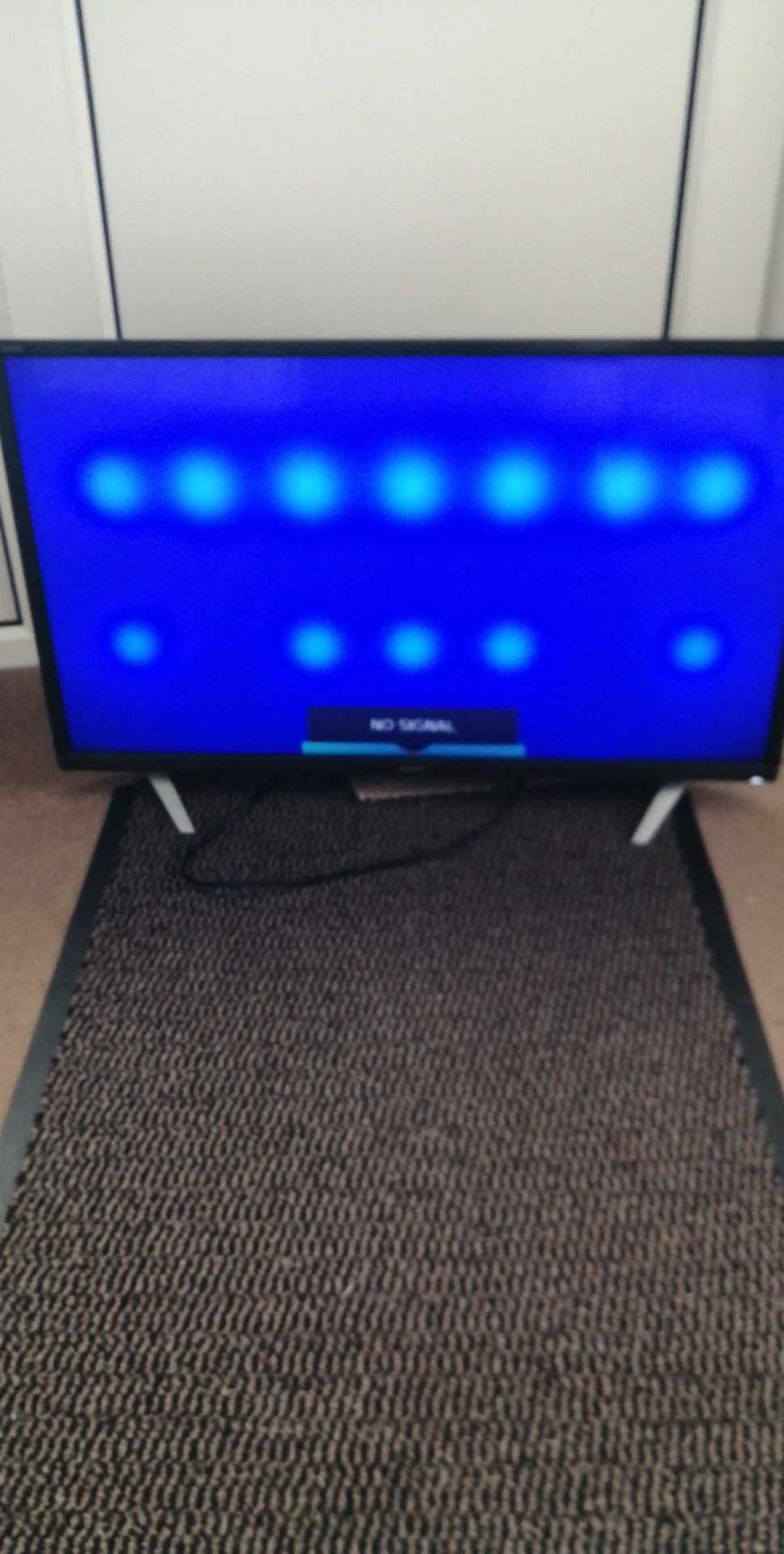

Strange light effect.Cheers.

DullGreyGuy

The out of focus photo doesn't help too much but you can see at the bottom of the screen it says it has no signal. Different companies show different things on the screen when there is no signal. Dont recall ever owning a Sharp flat screen TV but a blue screen with random dots may be theirs... my LG just shows a blue screen but have seen screen shots of other models where it appears to have a small graphic that appears to be a simplified moon orbiting the earth.

RumRat

Looks like either, Backlight strip LED lenses detached from the strip. Or, Focus sheets have moved.
Both fixable, look around YouTube, if you have the inclination.

ThisIsWeird

Thanks both.

It's not actually my TV, but a super-cheap one available locally that might do as my PC monitor (my current 42" Plasma chucks out the heat...)

The sellers do say it's hardly noticeable when there's an actual picture on the screen, and their son seemingly plays games on it without issue.

I quite fancy a fix - as long as it's simple.

Cheers.

cerebus

Sometimes you have to take a punt on things, especially if it's dirt cheap!

ThisIsWeird

Cheers. Yes it is, and I'm not bothered about some bleed - it's just for surfing and MSE...

ThisIsWeird

RumRat said:

Looks like either, Backlight strip LED lenses detached from the strip. Or, Focus sheets have moved.
Both fixable, look around YouTube, if you have the inclination.

Looks like the LED lenses as you say, RR.

This shows it being sorted:

https://www.youtube.com/watch?v=dXDXYoctL3k

I fancy a go if I can get it super-cheap. I bet it's awkward, tho'... :-)

facade

ThisIsWeird said:

RumRat said:

Looks like either, Backlight strip LED lenses detached from the strip. Or, Focus sheets have moved.
Both fixable, look around YouTube, if you have the inclination.

Looks like the LED lenses as you say, RR.

This shows it being sorted:

https://www.youtube.com/watch?v=dXDXYoctL3k

I fancy a go if I can get it super-cheap. I bet it's awkward, tho'... :-)

I wouldn't use super glue, it will turn the lens white after a few days as the vapour reacts with moisture in the air.

Clear silicon will probably work, or one of the bostik type glues.

a

I guess you have two faulty leds too. Bottom row from the left (or right)
working Led, failed led, three working led, Failed led, working Led

ThisIsWeird

a said:

I guess you have two faulty leds too. Bottom row from the left (or right)
working Led, failed led, three working led, Failed led, working Led

Eek!

I was hoping that these had their lenses still in place?

ThisIsWeird

Phew.

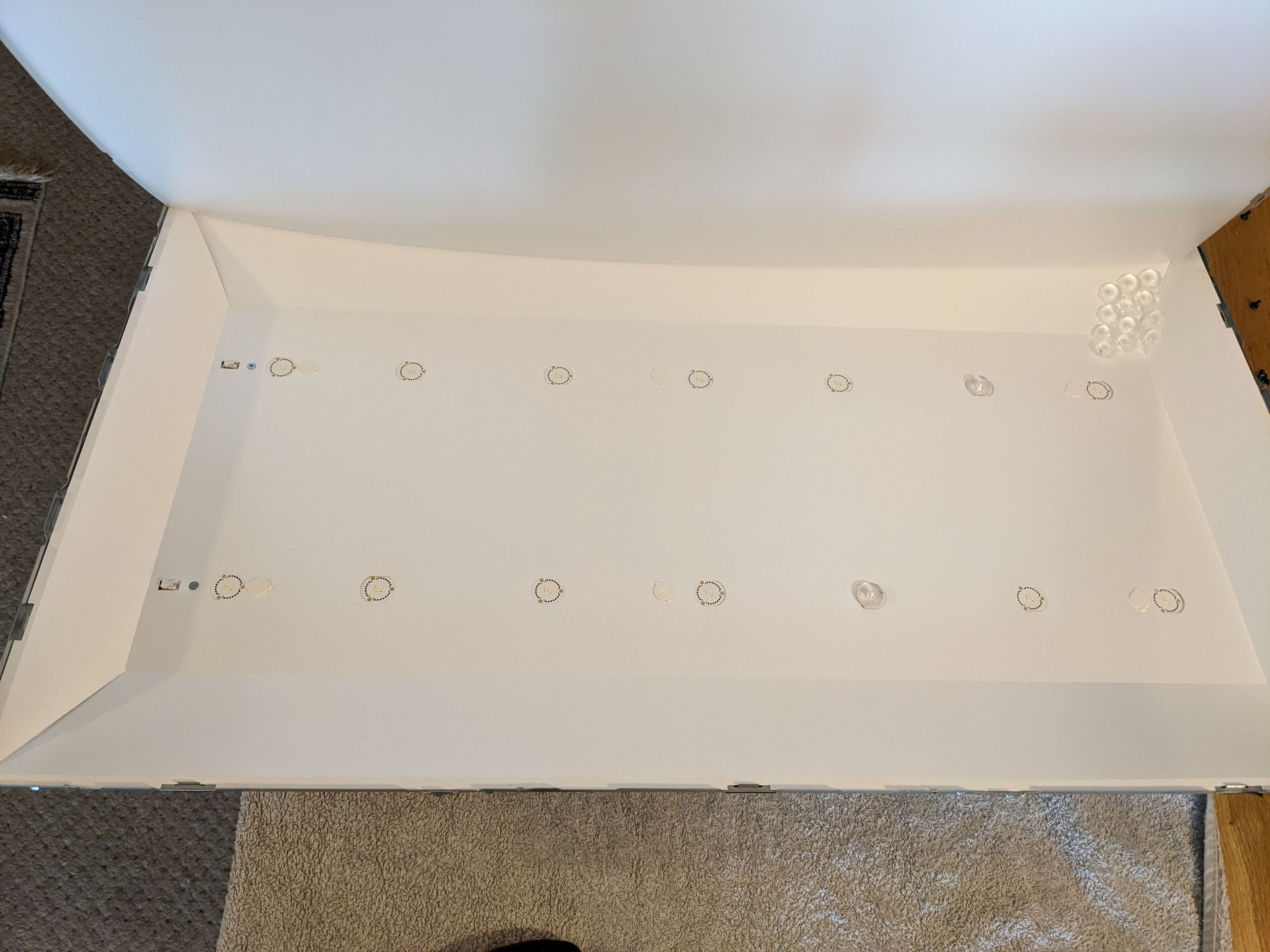

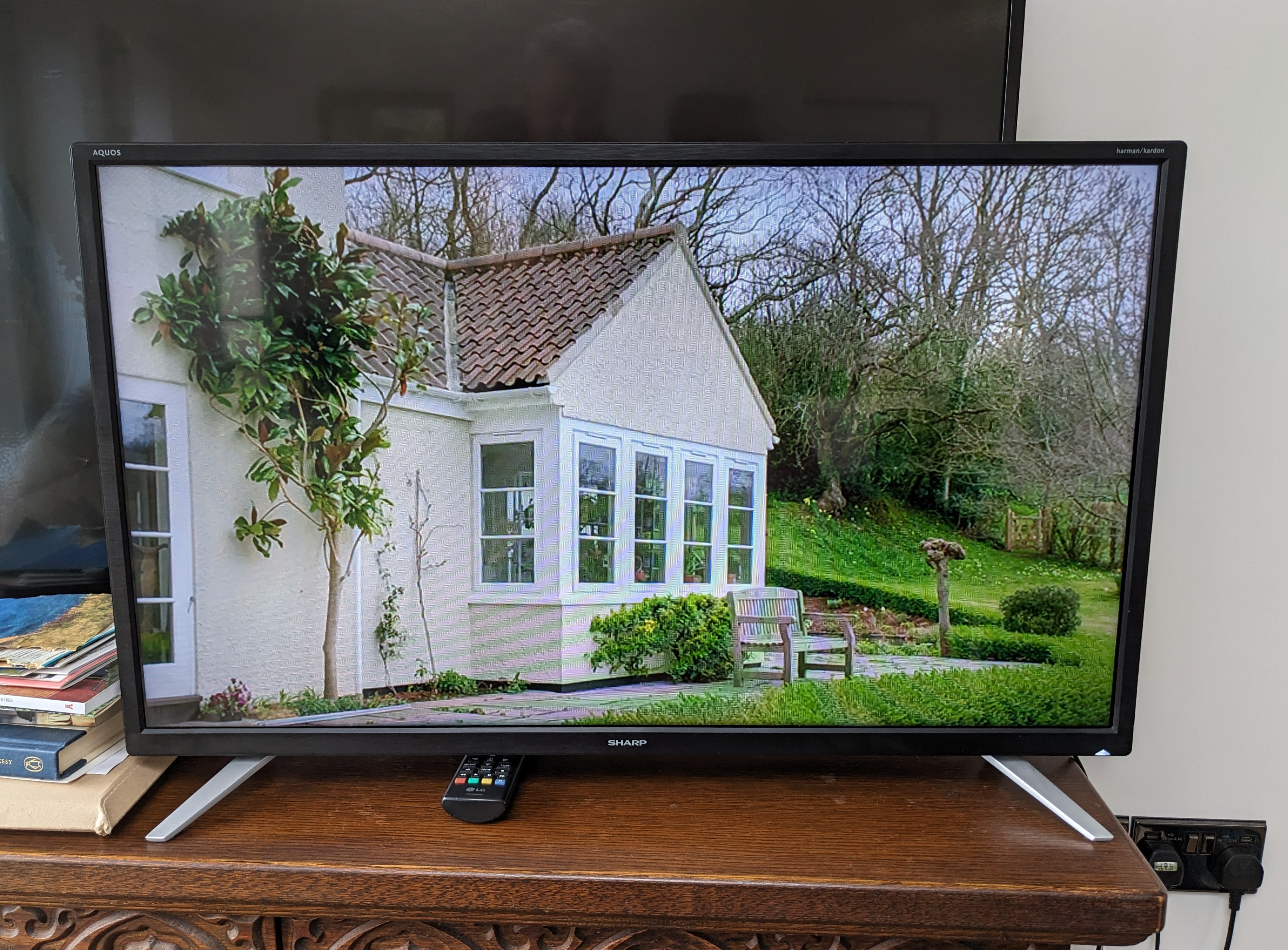

Picked up my £15 Smart TV this morn, and it rattled like a bag of marbles as I put it in the car.

Took it apart - lawdie, I hate ribbon cable connectors - in fact all sorts.

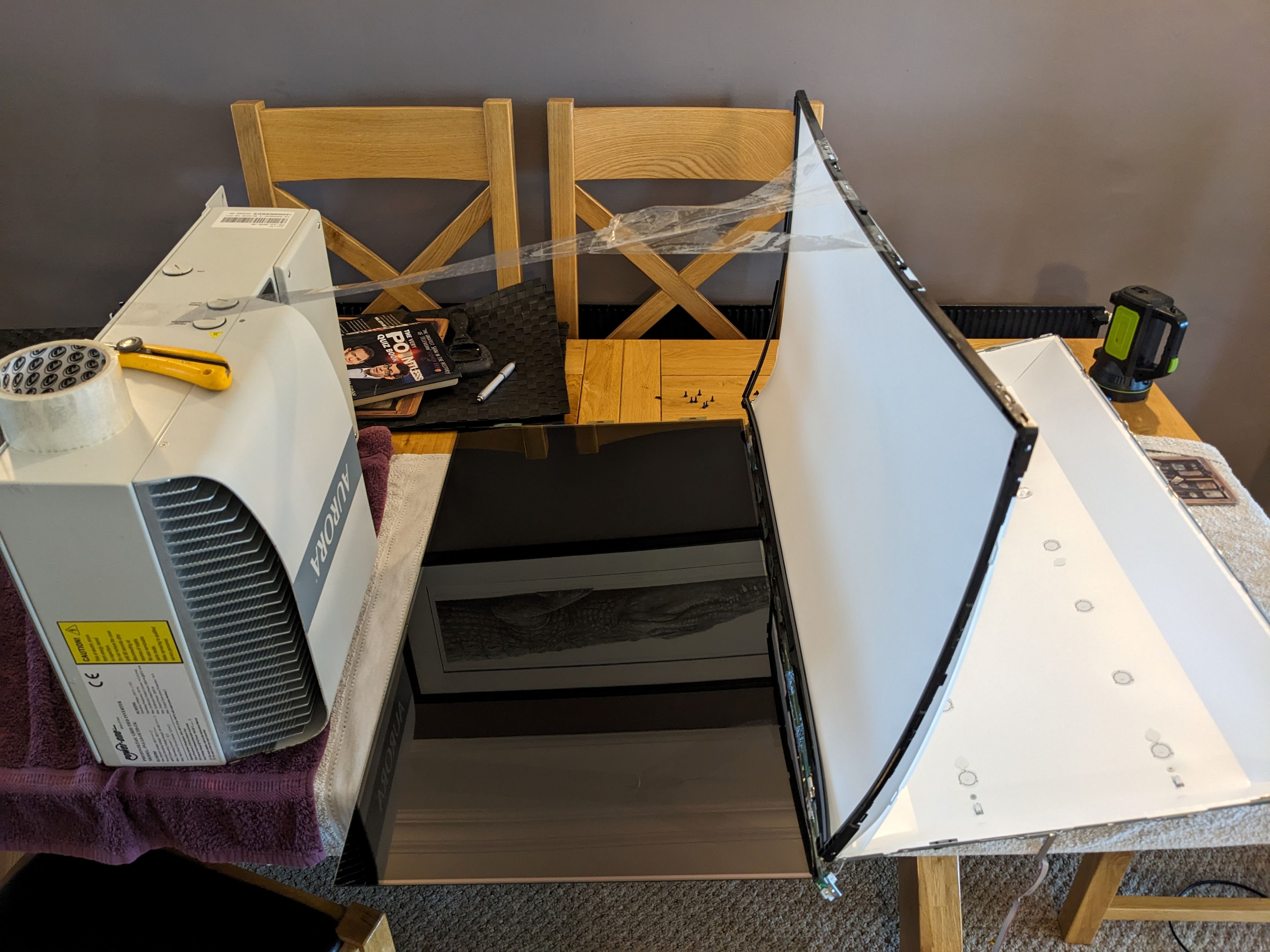

Couldn't bear to undo the delicate ones for the screen itself to fully detach it, so devised a way to hold it and the various opaque panels out of the way without fully disconnected it whilst I tackled the offended lenses.

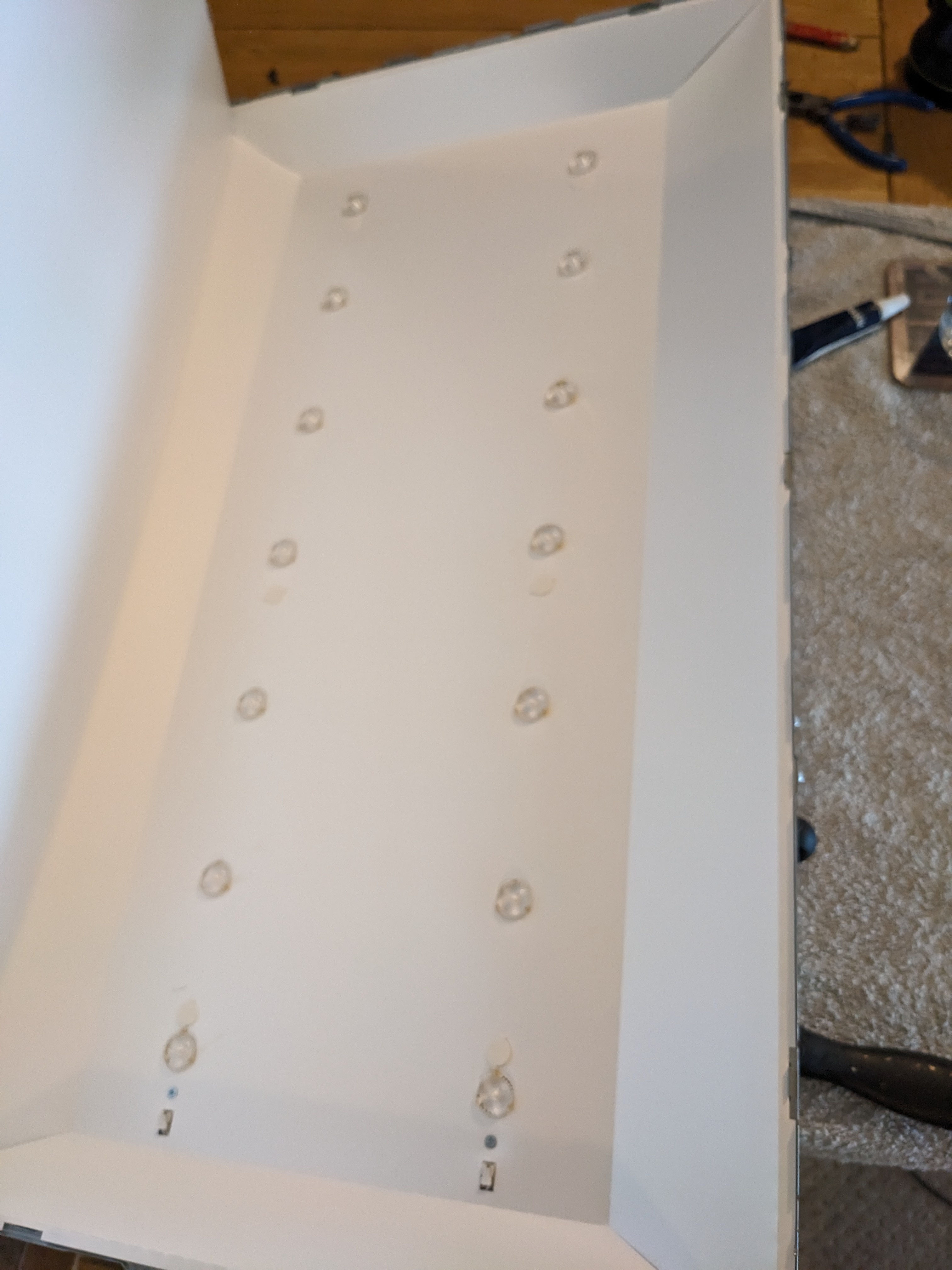

Used clear Bostic contact adhesive - worked well (thanks Facade).
