Solar inverter over voltage reports.

Tecgi

JKenH said:

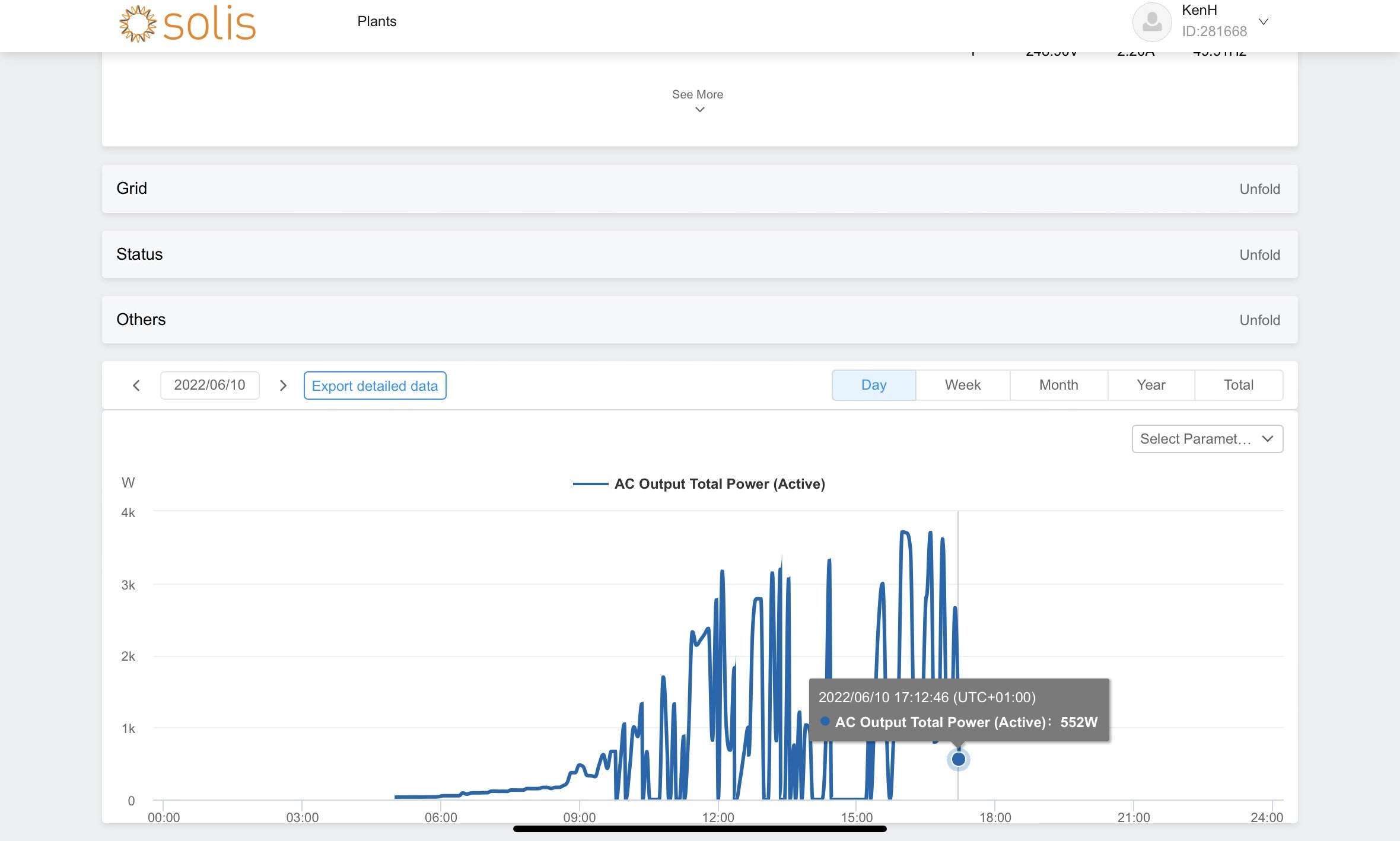

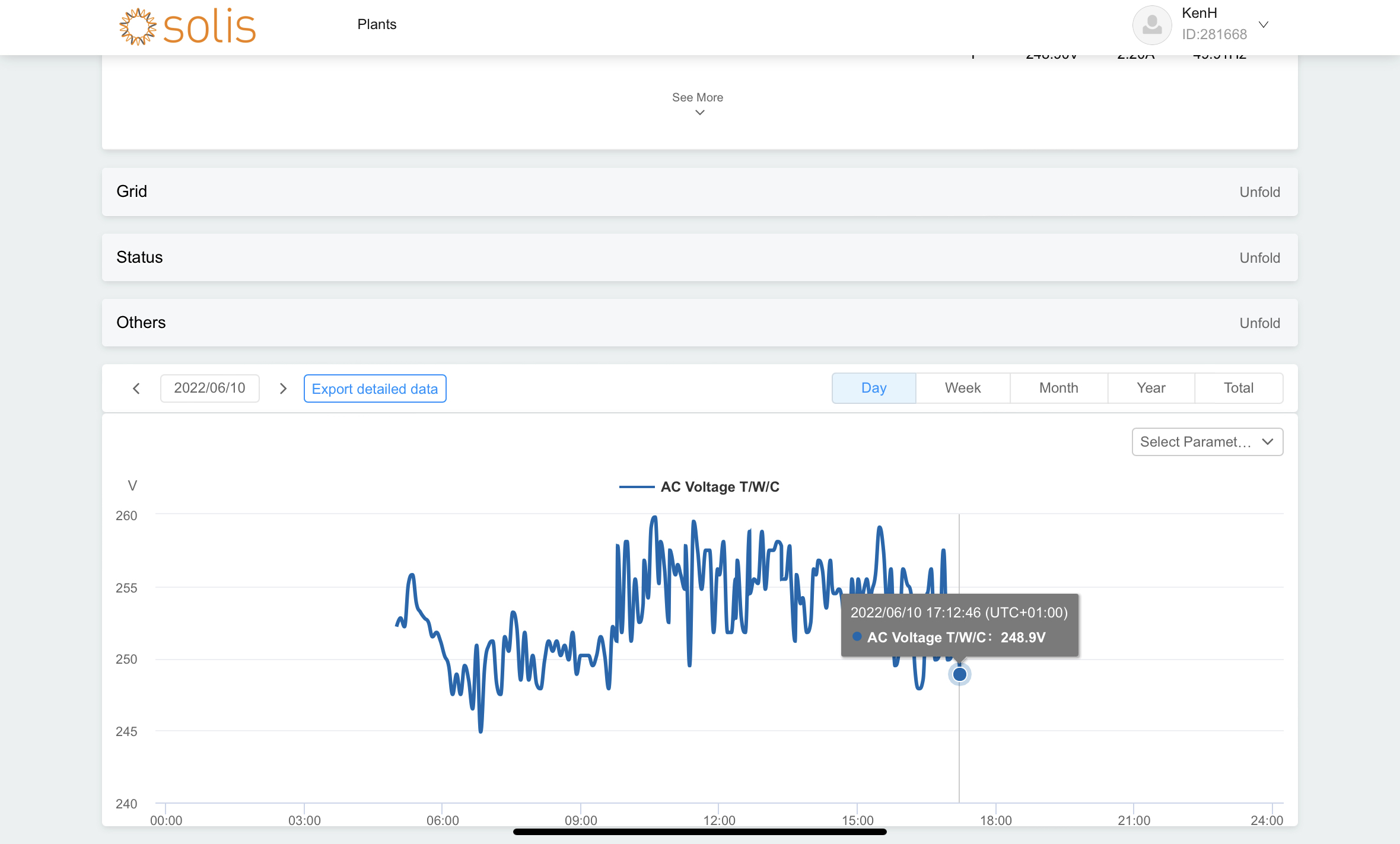

Todays output, voltage and combined plots. I had quite a long outage this afternoon. Maximum voltage was 259.8v

Dear, where could I take these screenshots? I have my access on SolisCloud.com

[Deleted User]

Tecgi said:

JKenH said:

Todays output, voltage and combined plots. I had quite a long outage this afternoon. Maximum voltage was 259.8v

Dear, where could I take these screenshots? I have my access on SolisCloud.com

I haven’t read the whole thread but this is what I did 12 months ago when my EV and battery detected frequent over-voltages.

I contacted my DNO and I asked them to pull the historic 30 minute voltage data from my smart meter. On the basis of what they could see, the DNO agreed to fit a voltage recorder. They subsequently tapped my local transformer down to 240 volts.

Grandad2b

Tecgi said:

JKenH said:

Todays output, voltage and combined plots. I had quite a long outage this afternoon. Maximum voltage was 259.8v

Dear, where could I take these screenshots? I have my access on SolisCloud.com

Good question.
I've not seen anything like this on Soliscloud either.

Tecgi

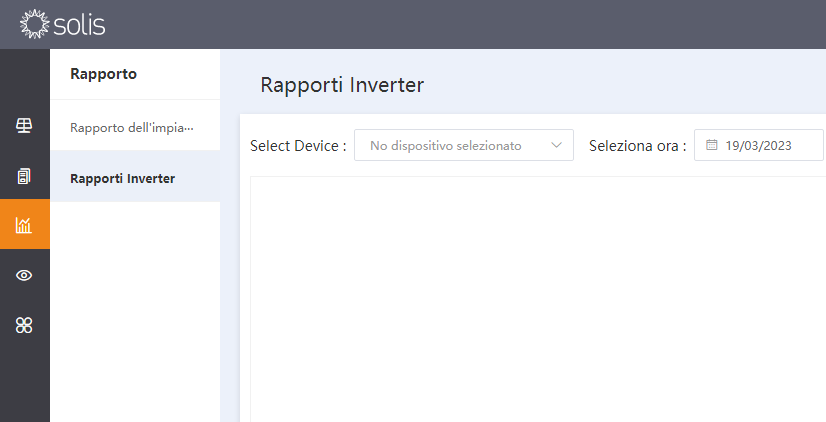

Perfect, I have find the complete daily report, with all data in SolisCloud.
My inverter not working properly when it's in alarm for "Grid over voltage" I see that the grid voltage is over 250 (like 252, 256,...).
So according you is it the problem?
