WC Grab Rails - Fitting Guidance (drawings)

lynx10

I wish to fit a pair of 300mm grab rails for a low-level WC (on the walls either side of the WC), and require an authorative source of guidance, ideally *with drawings*.

E.g., this is one source, but is without drawings.

Choosing and fitting grab rails

https://www.dlf.org.uk/factsheets/grab-rails#4c

greyteam1959

You are getting too complicated.
Sit the person who needs the grab rails on the toilet.
Ask them to reach out & find where the rails need to be for THEIR comfortable use.
Mark & fit to wall.
Or fit a raised toilet seat.

lynx10

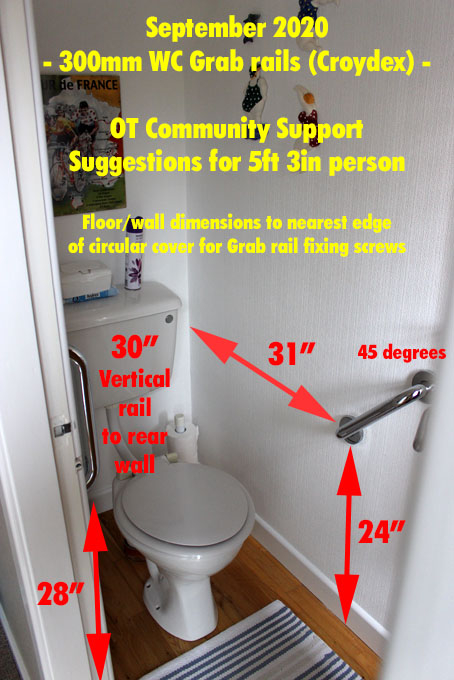

See photo for the mixed orientation (vertical + sloped rails) suggested by local OT Community support, following site assessment.

Also, this Australian site is useful, e.g., search for ‘grabrail orientations’: https://www.homemods.info/
