Hyundai electric window problem

danrv

Hi

My 2012 Hyunda i30 Comfort 1.6 estate has an annoying problem with the electric windows.

Particularly with the front passenger side. The door switch lowers the window fine but doesn't raise it. The driver's side master switch is also faulty. Both near side window switches on the unit only lower the two nearside windows.

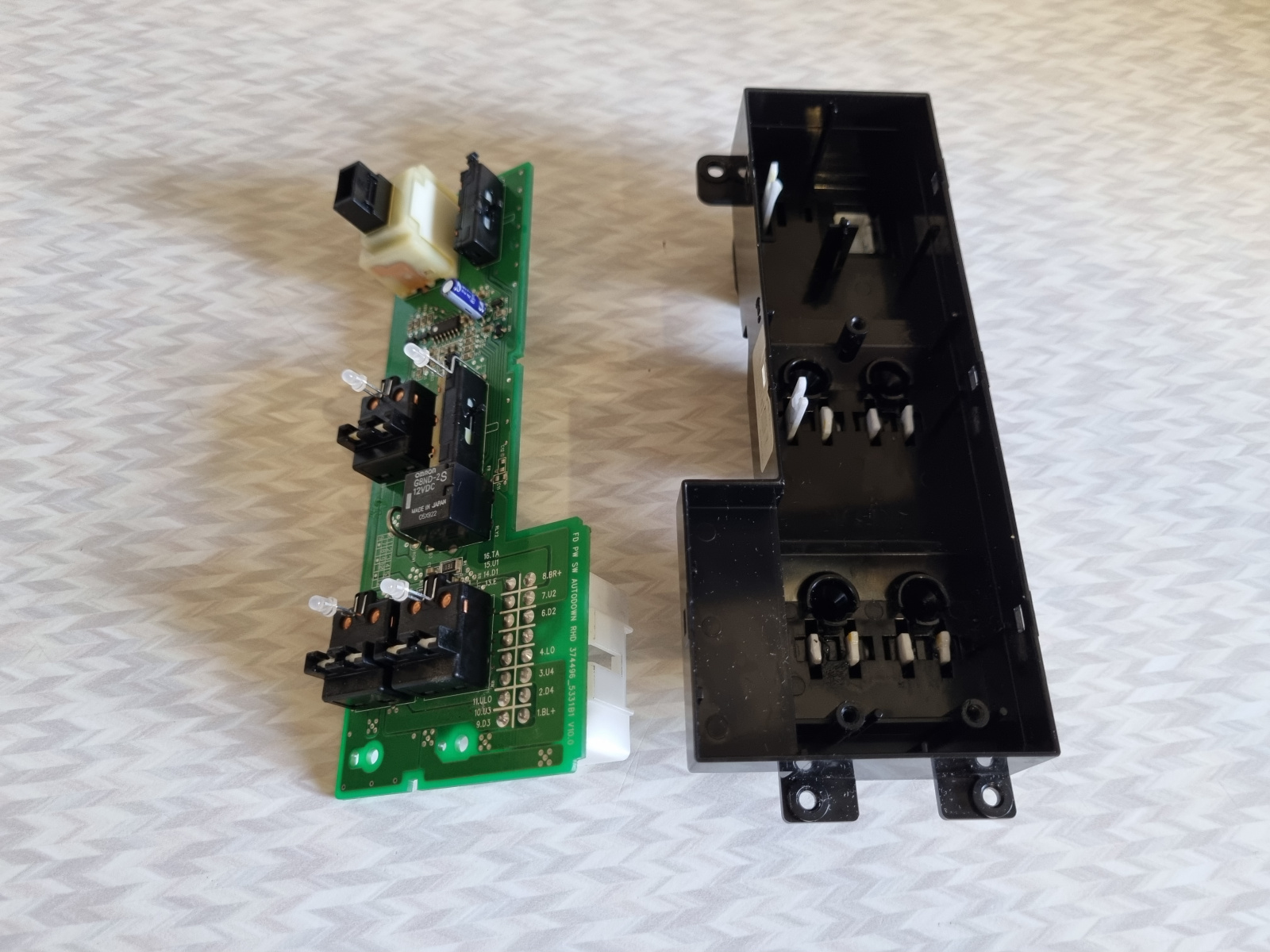

I've taken the switch units out and sprayed switch cleaner in the contacts on the PCB. Also checked for make & break with a multi tester which is fine.

The nearside front electric motor plug also seemed to benefit from some switch cleaner as that side worked both ways after that. I checked for 12v at the motor plug which was fine

After assembling the door, the 'up' switch again stopped working. Sometimes engages when lifting the switch gently and can hear a slight click when it doesn't work. That seems to point to a problem with the electric motor.

Just wondering if anyone has had issues like this. I think some Kia's have the same switches. Any help appreciated.

Alanp

silly question, but is it just a case of the switches need resetting, I seem to remember some fords did this and there was a simple sequence to reset them, ( holding the switch up or down for so many seconds whilst turning on/off the ignition, or something like that). I would try the Hyundai forums and see if they can help…

Lorian

Have a search on www.i30ownersclub.com plenty of discussions around window switch issues.

flaneurs_lobster

https://forums.moneysavingexpert.com/discussion/comment/82064150#Comment_82064150

Is it Up, Up, Down, Down, Left, Right……….

Bigwheels1111

Vectra’s one touch would stop working when the service light came on.

The fix was hold down on the button / drivers side.

Then hold up, once it goes to the top keep holding the switch up until you hear a click / thunk.

Then they work again.

If cleaner worked, well sort of I would think the switch got wet over and over again. Possibly.

Might just need a new switch. Breakers yard or eBay.

Goudy

I think you will find it's the switch or switches, but if you can access the wiring to the switch, you can test the regulator/motor by bridging the wires with a probe to rule that out.

Bit I know these switches get fitted to a lot of Hyundai's and they become problematic.

danrv

https://forums.moneysavingexpert.com/discussion/comment/82064485#Comment_82064485

Yes. It doesn't look like the switches can be dismantled any further than I have done. They click fine when the white part is pressed with a screwdriver and works as it should when checking with a multimeter.

With the master switch PCB connected to the loom, the two switches for raising the nearside windows don't work when pressed with a small screwdriver. A click can be heard at the electric motor and with harder pressing, it will occasionally engage.

That points to the switch internal contacts maybe being corroded but the audible click at the motor suggests it's working ok. What's more is that the rear nearside door switch and motor work fine. It doesn't add up.

An aftermarket master and single door switch might be the answer as the genuine parts are quite expensive.

lordmountararat

I had a 2010 Hyundai i30 with this window problem. The dealer said it was a common fault and fixed it without charge.

flaneurs_lobster

https://forums.moneysavingexpert.com/discussion/comment/82066069#Comment_82066069

By doing what?

danrv

https://forums.moneysavingexpert.com/discussion/comment/82066072#Comment_82066072

Yes. Would be useful to know.

lordmountararat

https://forums.moneysavingexpert.com/discussion/comment/82066072#Comment_82066072

I have no idea. I just drove it to the dealership and they fixed it while I waited.
