Non-destructive ways of finding out if you have cavity wall insulation

Options
24

Comments

  • stuart45
    stuart45 Posts: 4,864 Forumite
    Sixth Anniversary 1,000 Posts Name Dropper

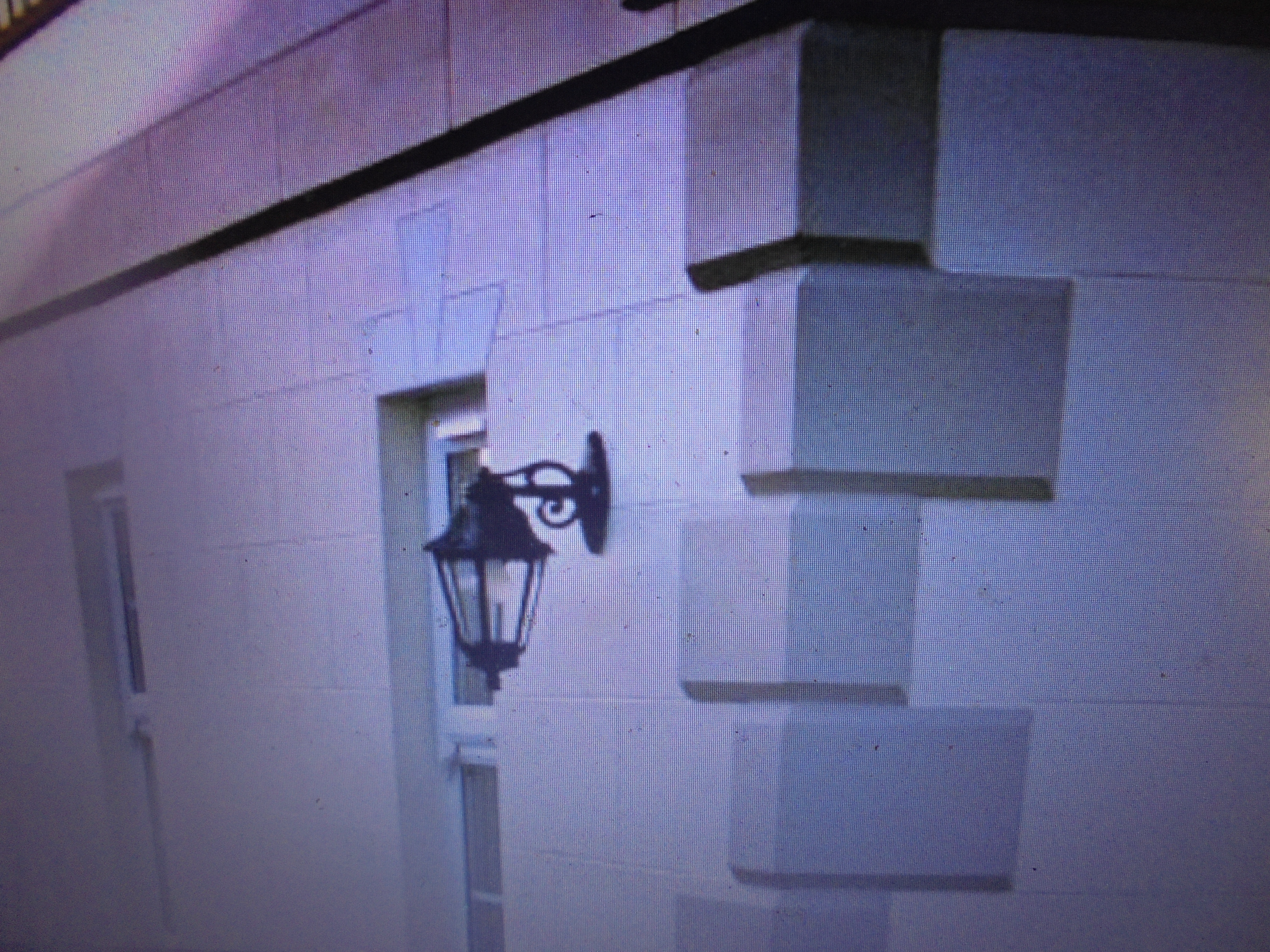

    Does the corner look like this?


  • Ergates
    Ergates Posts: 3,045 Forumite
    Part of the Furniture 1,000 Posts Name Dropper
    stuart45 said:
    Does the corner look like this?


    No - there are sand stone (presumably) lintels around the windows, but not on the corners.
  • grumbler
    grumbler Posts: 58,629 Forumite
    Part of the Furniture 10,000 Posts Name Dropper Photogenic
    edited 13 May 2022 at 7:45PM
    FreeBear said:
    Ergates said: Short of drilling a hole in the wall is there any way to tell?
    Short answer, no.
    If you do drill a hole, it need not be a big one - I have a small USB camera that will fit down an 8mm hole - https://www.ebay.co.uk/itm/154715346925 - Pick a spot behind a down pipe, and a hole will never be noticed once filled.


    It can be even smaller, say, 6mm, but the drill bit has to be long.
    Drill though the mortar - about 10 cm . Then take the drill bit and usually you'll be able to feel the insulation simply by pushing the drill bit into the cavity. Also, when you drill though the cavity if its some sort of rock wool it usually wraps around the drill bit and sometimes even stops drilling.


  • Ergates
    Ergates Posts: 3,045 Forumite
    Part of the Furniture 1,000 Posts Name Dropper
    grumbler said:
    FreeBear said:
    Ergates said: Short of drilling a hole in the wall is there any way to tell?
    Short answer, no.
    If you do drill a hole, it need not be a big one - I have a small USB camera that will fit down an 8mm hole - https://www.ebay.co.uk/itm/154715346925 - Pick a spot behind a down pipe, and a hole will never be noticed once filled.


    It can be even smaller, say, 6mm, but the drill bit has to be long.
    Drill though the mortar - about 10 cm . Then take the drill bit and usually you'll be able to feel the insulation simply by pushing the drill bit into the cavity. Also, when you drill though the cavity if its some sort of rock wool it usually wraps around the drill bit and sometimes even stops drilling.


    Problem will be, I can't see the mortar.   But I have an small endoscope type camera anyway.
  • Sistergold
    Sistergold Posts: 2,135 Forumite
    Sixth Anniversary 1,000 Posts Name Dropper Photogenic
    edited 14 May 2022 at 7:44AM
    Remove a brick or two(chisel out) from inside wall in the house and repair back replaster. Suggested from inside wall outside there as outside wall is rendered and wouldn’t want to disturb that 🤷‍♀️.

    ##### I have no building experience at all so this is just a wild thought that crossed my mind. So it’s not advice but something I would possibly do if it was important for me to know if my walls were insulated or not.
    ### it’s is slightly destructive


    Initial mortgage bal £487.5k, current £258k, target £243,750(halfway!)
    Mortgage start date first week of July 2019,
    Mortgage term 23yrs(end of June 2042🙇🏽♀️),
    Target is to pay it off in 10years(by 2030🥳).
    MFW#10 (2022/23 mfw#34)(2021 mfw#47)(2020 mfw#136)
    £12K in 2021 #54 (in 2020 #148)
    MFiT-T6#27
    To save £100K in 48months start 01/07/2020 Achieved 30/05/2023 👯♀️
    Am a single mom of 4.
    Do not wait to buy a property, Buy a property and wait. 🤓
  • onejrmmrj
    onejrmmrj Posts: 10 Forumite
    Third Anniversary First Post
    If you are competent -

    Ensure that the circuit is switched off at the fuse box then remove a socket or light switch and its back box and drill behind that.


  • grumbler
    grumbler Posts: 58,629 Forumite
    Part of the Furniture 10,000 Posts Name Dropper Photogenic
    onejrmmrj said:
    If you are competent -

    Ensure that the circuit is switched off at the fuse box then remove a socket or light switch and its back box and drill behind that.


    A back box can often be difficult to remove, but usually you can drill through it if sure about the cables position behind.
  • UncleZen
    UncleZen Posts: 855 Forumite
    Part of the Furniture 500 Posts Name Dropper Photogenic
    In my meter cupboard there are some gaps, where the cavity can be seen. Check yours.
  • ris2015
    ris2015 Posts: 52 Forumite
    Tenth Anniversary 10 Posts
    Check top of wall from inside your loft space.
  • Chickereeeee
    Chickereeeee Posts: 1,286 Forumite
    Part of the Furniture 1,000 Posts Name Dropper Combo Breaker
    ris2015 said:
    Check top of wall from inside your loft space.
    That's my suggestion. I can put my fingers down the gap there in mine.
