Name of these Terminal Blocks?

anotheruser

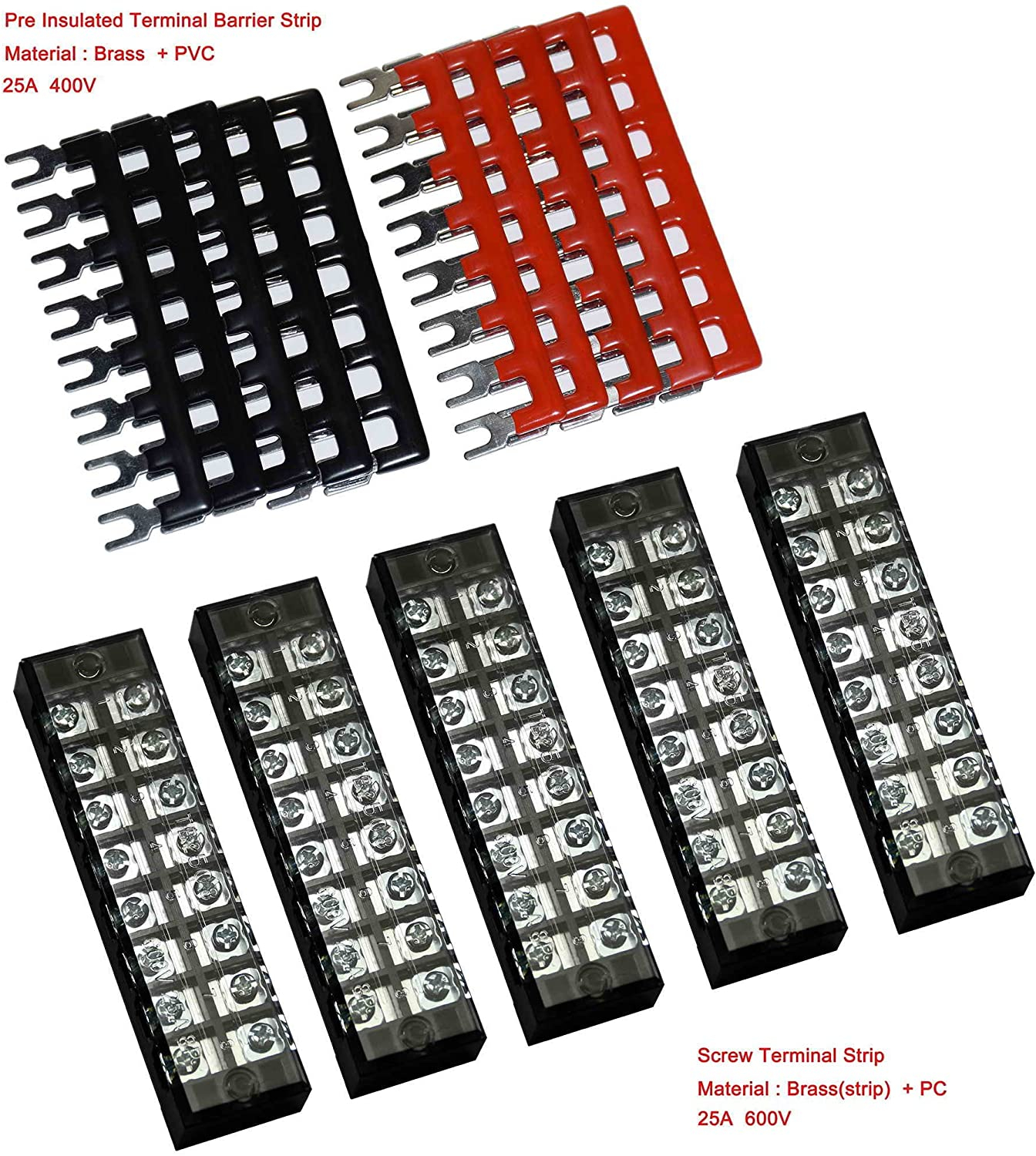

Does anyone know the name of these?



And if they're available relatively cheaply (not from Amazon?)

Thanks

ianto11

Pre Insulated Terminal barrier strip .....https://www.ebay.co.uk/sch/i.html?_from=R40&_trksid=m570.l1313&_nkw=Pre+Insulated+Terminal+Barrier+Strip&_sacat=0

Andy_L

Barrier strips or terminal strips. Which depends on manufacture/country.
All the usual electronic/electrical supplies will sell them

anotheruser

Thanks.

Are there connectors you can get that would fit in normal choc blocks?

Or is it just a case of looping some wire between them?

ianto11

These are effectively a type of Busbar, you connect the barrier strip in one side of the terminal block.

And in the instance you've pictured above,  for power distribution you could have one +ve supply in the top at the other side which would then allow you to use the other 7 as +ve outlets.

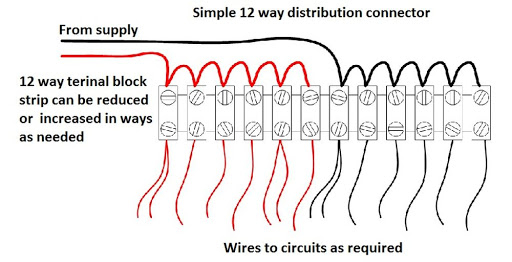

What is it you're trying to achieve ?  This ?

shinytop

anotheruser said:

Thanks.

Are there connectors you can get that would fit in normal choc blocks?

Or is it just a case ofoopig some wire between them?

You can make the choc bloc method a bit more robust by crimping ferrules onto the wires rather than using bare wires.

anotheruser

ianto11 said:

What is it you're trying to achieve ?  This ?

Yeah, pretty much.
I guess I just have to weigh up the effort to do this with what I have (free but time to do it) or spend £14 odd and get a set of 5.
