Replacement radiator panel

rca779

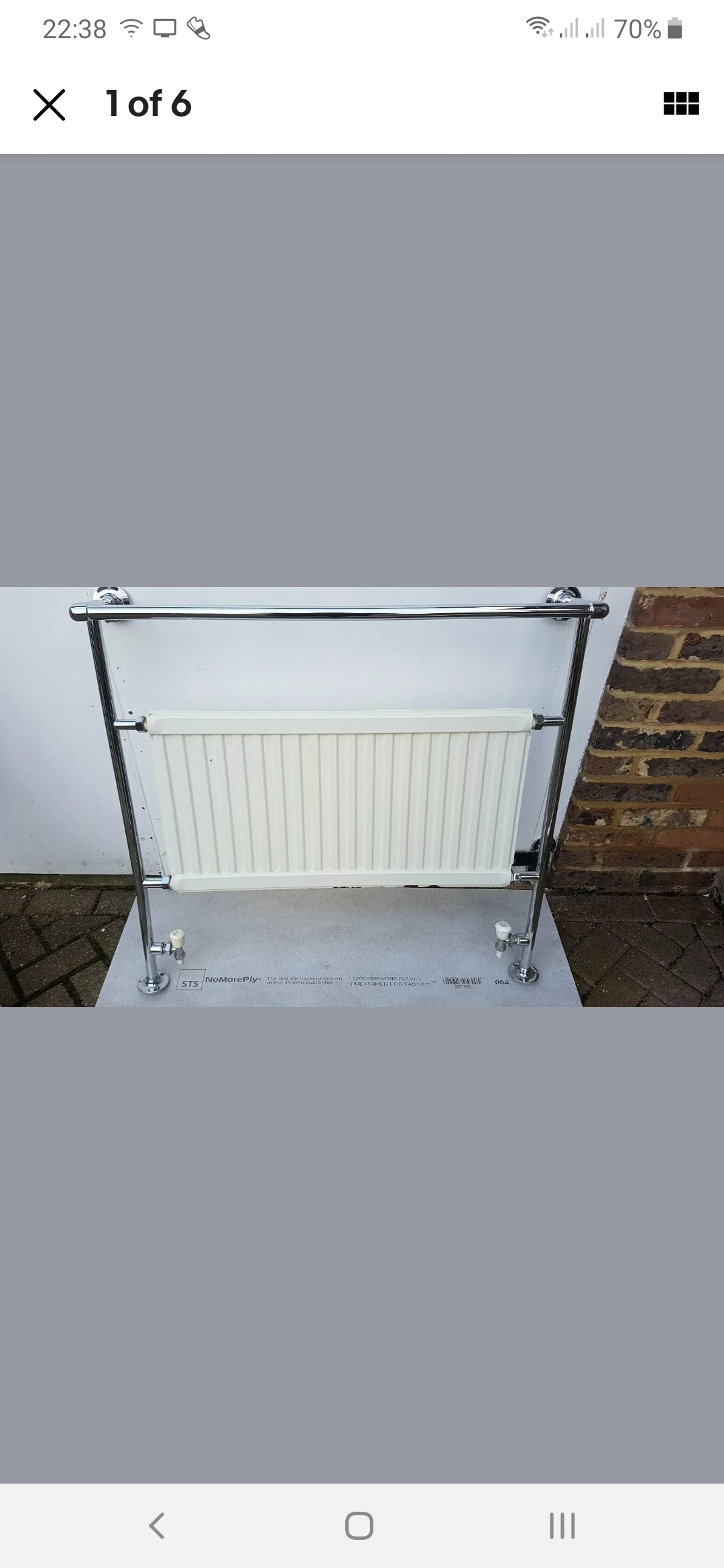

I need to replace the radiator panel in my heated towel rail.  It is  745mm wide by 370mm high. It looks a bit like the picture below.  Any suggestions where I could get this from?

FreeBear

By the sounds of it, an old imperial size radiator. A type 10 (single panel, no fins). The closest match would be - https://www.radiators.co.uk/product-range/myson-premier-he-imperial?filter_height-range=300-399mm&filter_configuration=single-k1&filter_width-range=700-799mm - Unfortunately, a type 11 (single panel, fins down the back). It won't be cheap either.

nofoollikeold

Where are you measuring it?
Given that its has to fit within a framework of rigid chromed pipes, your measurements will need to be exact.  You need to know:
1. The width from the edge of the pipe fitting (chrome nut removed) on one side to the same point on the other.
2. The height from the centre line of the lower pipe connection to the centre line of the upper pipe connection.
Once you have that, or if that is what you have already measured, then as FreeBear suggests - look at Myson imperial sizes.
If you can get the height right, you could go for a slightly narrower radiator and use extenders to make up the difference.
If it isn't holed, might be easier to remove, get it sand blasted and re-sprayed.

TELLIT01

Thanks for the information about imperial size radiators still being available.  I'm looking to replace one of mine so timing is great.

Belenus

rca779 said:

I need to replace the radiator panel in my heated towel rail....

Would it be easier to replace the entire towel rail?
