Flexible hose tap connection

JIL

Hi,

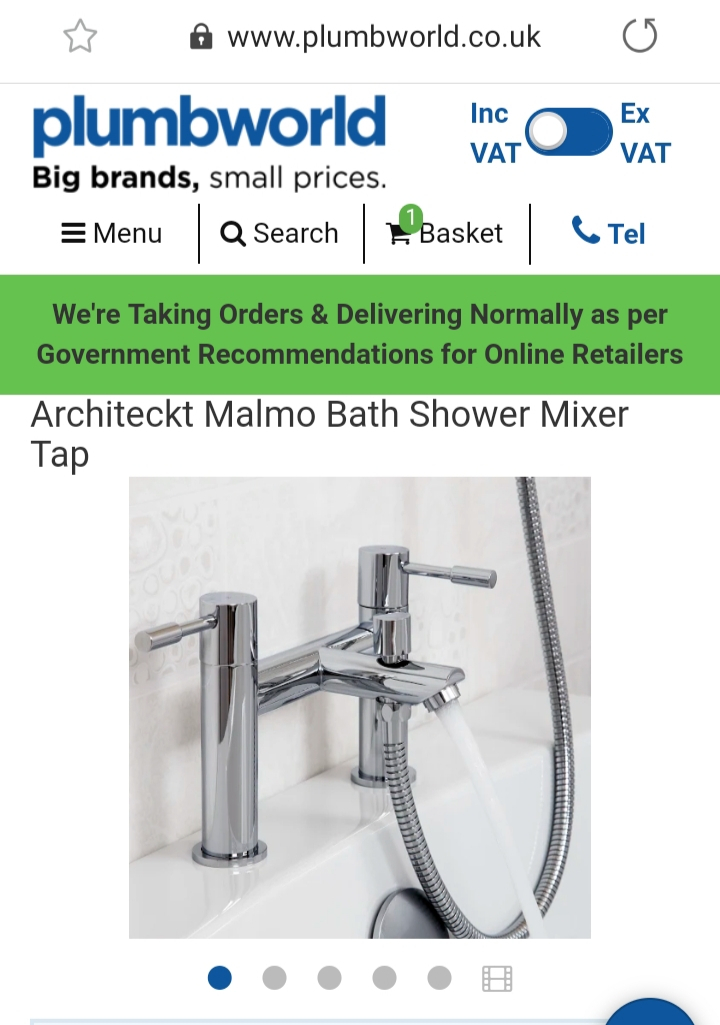

I bought this from plumbworld, but ig doesnt have the flexible tap connection to fit it. I have tried to do an online chat with the retailer but its unavailable and reading the specifications I cant see if one was included.
Anyone know what size I should get?
I intend to order one and not do unnecessary shopping.
Thanks in advance and stay safe and well.

FreeBear

According to the other images, you should have a flexible hose included, along with a shower head, two each of chrome washers, black washers, and top hat washers.

JIL

Thanks, that's everything that was with the order.
What I was looking for is the flexible hoses that can be used to connect to the water supply. Not sure what size I need to order.
I cant get through on the phone, I was hoping I could order them and use them rather than a plumber.
Thanks

molerat

I assume OP means the flexi connections to fit to the mains water, it only comes with a shower hose.  You need 3/4" tap connections, something like this https://www.screwfix.com/p/flexible-tap-connector-with-valve-22mm-x-x-300mm/6694g

JIL

Thank you so much.

FreeBear

molerat said: I assume OP means the flexi connections to fit to the mains water, it only comes with a shower hose.  You need 3/4" tap connections, something like this https://www.screwfix.com/p/flexible-tap-connector-with-valve-22mm-x-x-300mm/6694g

Or if the pipes under the bath are 15mm, https://www.screwfix.com/p/flexible-hose-with-valve-15mm-x-x-300mm/1460g would be better.

JIL

You may not believe it, but one is 15mm and the other 22mm.
Thanks again for the help.

FreeBear

JIL said: You may not believe it, but one is 15mm and the other 22mm.

Depending on the age of your plumbing, the 22mm pipe could in fact be 3/4" - I certainly have a mix of imperial copper (and lead) pipes and modern metric pipes. Going from 1/2" to 15mm isn't a problem, but anything involving the 3/4" pipes can be challenging.

neilmcl

Doesn't the installation guide say what size of fitting it requires. My guess would be 3/4".

JIL

neilmcl said:

Doesn't the installation guide say what size of fitting it requires. My guess would be 3/4".

No, it says can be fitted conventionally or using flexible hoses. Doesnt give a size. I googled to see if I could get some further information but couldn't.
The basin tap, has them.
I have ordered 3/4 ones.
Thanks again for everyone's helpful advice.
