Trying to work out boiler timer

ayupmeduck

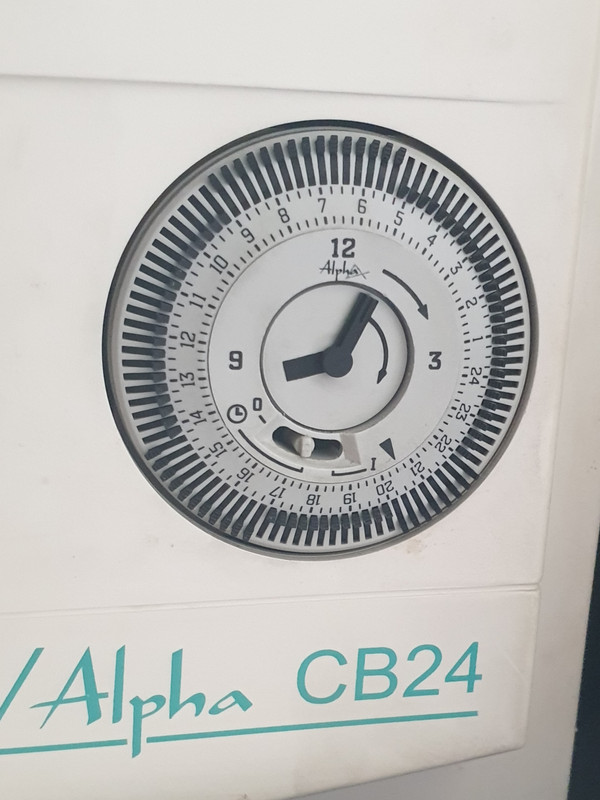

Can anyone tell what time I have set on the boiler



I can't seem to get it right and the heating comes on when I want it off lol

thorganby

Ignore the previous post!

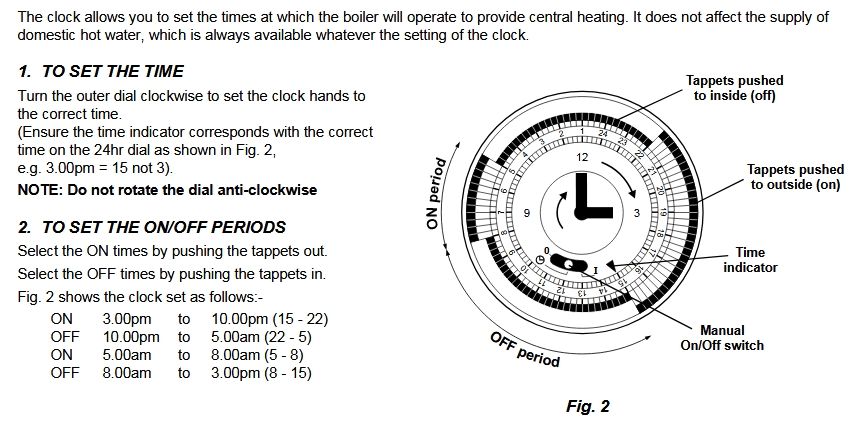

Instructions:

dunroving

thorganby wrote: »

Ignore the previous post!

Instructions:

+1 ... I had the exact same timer at my last house. "Out" = "On".

ayupmeduck

I understand that bit but I can't seem to set the timer right lol

getmore4less

ayupmeduck wrote: »

Can anyone tell what time I have set on the boiler



I can't seem to get it right and the heating comes on when I want it off lol

When did you take that picture?
the jpg seems to have 13:18 and the post was 13.29

the clock hands hands have 8:05

The on/off is set to 20:30

once right you are set to on.
5:30-9:00
14:15-16:45
20:15-22:00

southcoastrgi

The time is the arrow at the 5 o'clock position

flashg67

approx 8.10 pm I'd say! looks similar to mine - never exactly spot on, but near enough. The black pointer at the bottom shows the current time

ayupmeduck

southcoastrgi wrote: »

The time is the arrow at the 5 o'clock position

Thank you, I've looked at the instruction and that arrow multiple time and didn't see it lol
