It's all to do with your inverter, if it outputs 3.68kw then that's the max you can use from your system to your home.
If you have batteries installed with a Hybrid inverter then depending on it's rating it can feed 3.68 to your home and charge a battery with excess at the same time (DC coupled).
There's loads of good YouTube vids explaining DC coupled, A.C. coupled and Hybrid batteries, well worth a search.

ed110220

So after a lot of delays it was all installed yesterday.

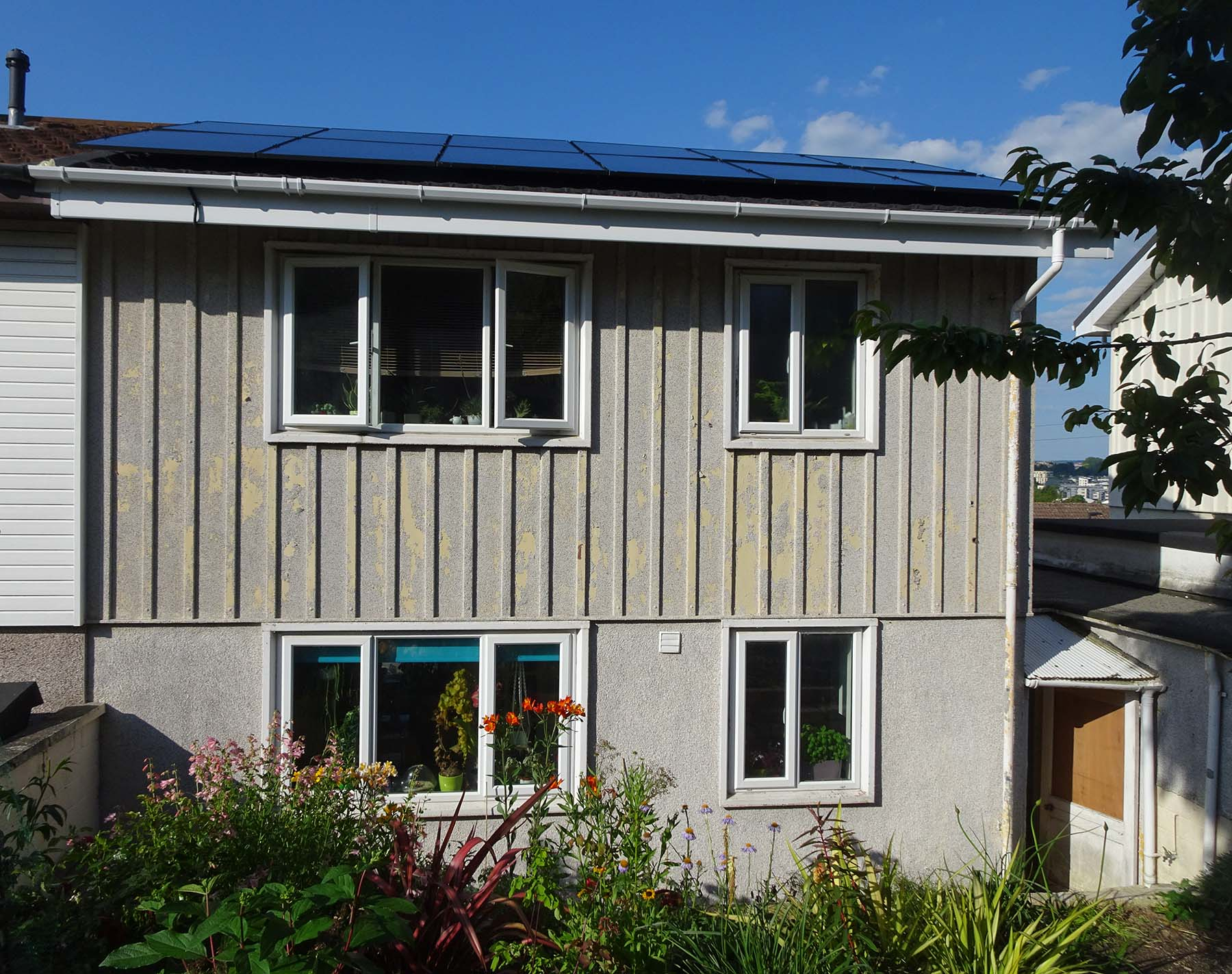

We have 12x 400W Hyundai panels (allegedly - they look a bit different from the photos in the data sheet or maybe it's just the angle?)

A Growatt SPH5000 inverter and 2x Growatt ML33RTA 3.3 kWh batteries.



shibli

ed110220 said:

So after a lot of delays it was all installed yesterday.

We have 12x 400W Hyundai panels (allegedly - they look a bit different from the photos in the data sheet or maybe it's just the angle?)

A Growatt SPH5000 inverter and 2x Growatt ML33RTA 3.3 kWh batteries.



Congrats on the new system!

I too have the Growatt inverter and battery similar to you with 4kwp panels as well as an iboost which was installed last week. My config is slightly different in that I have panels on both roofs as I am east/west facing. I find the system will first supply to the house with any excess charging the battery, where I usually have approx  50% left from overnight use, and then the iboost to heat the immersion cylinder. As a result I have hardly anything to export and sometimes struggle to keep the water hot enough without careful planning.

ed110220

shibli said:

ed110220 said:

So after a lot of delays it was all installed yesterday.

We have 12x 400W Hyundai panels (allegedly - they look a bit different from the photos in the data sheet or maybe it's just the angle?)

A Growatt SPH5000 inverter and 2x Growatt ML33RTA 3.3 kWh batteries.



Congrats on the new system!

I too have the Growatt inverter and battery similar to you with 4kwp panels as well as an iboost which was installed last week. My config is slightly different in that I have panels on both roofs as I am east/west facing. I find the system will first supply to the house with any excess charging the battery, where I usually have approx  50% left from overnight use, and then the iboost to heat the immersion cylinder. As a result I have hardly anything to export and sometimes struggle to keep the water hot enough without careful planning.

Thanks! These are all SW facing. Unfortunately I don't have a hot water tank as the old back boiler and fireplace were against a wall I took out to make the living room and dining room open plan, so I've exported 23 kWh since the panels went live at about 3 yesterday. I'm not begrudging other users of the grid some clean electricity, but I might if getting the SEG payment set up takes too long!
